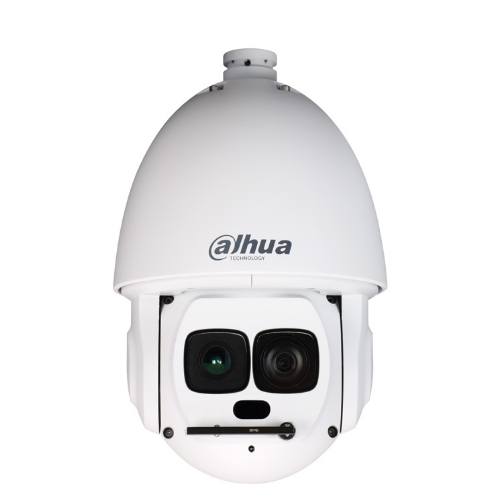

WizMind DH-SD6AL233XA-HNR security camera Spherical IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model DH-SD6AL233XA-HNREAN 6939554976131
99 specifications
- Memory1024 MB
- ConnectivityWired
- TypeIP security camera
- Weight6.75 kg
- ColourWhite
- Form factorSpherical
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 6.75 kg
- Colour
- White
- Form factor
- Spherical
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD6AL233XA-HNR
- Part number
- DH-SD6AL233XA-HNR
- EAN / UPC
- 6939554976131
- Also known as
- Dahua Technology WizMind DH-SD6AL233XA-HNR security camera Spherical IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
99 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Auto scan, Preset point |
| PTZ protocols | DH-SD, Pelco-P/D |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4-2014 |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 60.1° |
| Lens viewing angle, vertical | 35.3° |
| Lens viewing angle, diagonal | 67.9° |
| Tilt angle range | -20 - 90° |
| Tilt speed | 200 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 240 °/sec |
| Auto flip | Yes |
| White balance | Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp |
| Camera shutter type | Electronic |
| Preset programs quantity | 300 |
| Camera shutter speed | 1/3 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 33x |
| Digital zoom | 16x |
| Detect distance | 1655 m |
| Observe distance | 622 m |
| Recognize distance | 331 m |
| Focal length range | 5.8 - 191.4 mm |
| Auto focus | Yes |
| Focus | Motorized/Manual |
| Identify distance | 165 m |
| Maximum aperture number | 4.8 |
| Minimum aperture number | 1.5 |
| Closest focusing distance | 0.1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 550 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Analog signal format system | PAL |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image stabilizer | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 kbps - 20480 kbps |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 A-law, G.711 μ-law, G.722.1, G.726, PCM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Flash memory | 4000 MB |
| Internal memory | 1024 MB |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 7 |
| Alarm output channels | 2 |
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Missing object, Scene change |
| Motion sensor | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, PoE |
| AC input voltage | 24 V |
| Power consumption (typical) | 20 W |
| Power consumption (max) | 33 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 382 mm |
| Diameter | 24 cm |
| Weight | 6.75 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Technical details
| Specification | Value |
|---|---|
| Audio input | 1 |
| Number of video streams | 3 |
Other features
| Specification | Value |
|---|---|
| Audio output | 1 |
