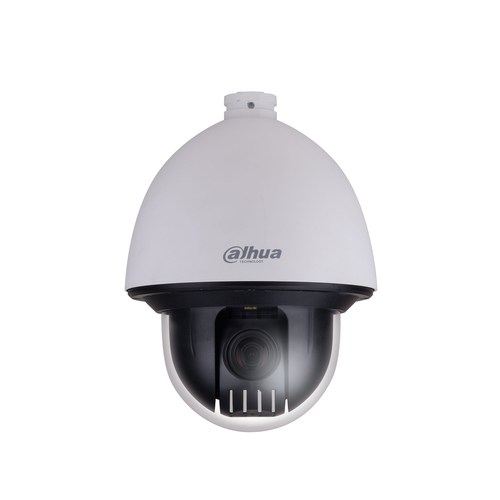

Pro DH-SD60430IN-HC security camera Dome IP security camera Indoor & outdoor
2592 x 1520 pixels Ceiling/wall
Model DH-SD60430IN-HC
91 specifications
- ConnectivityWired
- TypeIP security camera
- Weight3.5 kg
- ColourBlack, White
- Form factorDome
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 3.5 kg
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD60430IN-HC
- Part number
- DH-SD60430IN-HC
- Also known as
- Dahua Technology Pro DH-SD60430IN-HC security camera Dome IP security camera Indoor & outdoor 2592 x 1520 pixels Ceiling/wall
Specifications
91 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ protocols | Pelco-P/D, DH-SD |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Metal |
| Protection features | Water resistant |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Fog proof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 60° |
| Tilt angle range | -20 - 90° |
| Tilt speed | 150 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 600 °/sec |
| Pan speed | 300 °/sec |
| Auto flip | Yes |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 16x |
| Detect distance | 2700 m |
| Observe distance | 1080 m |
| Recognize distance | 540 m |
| Focal length range | 4.5 - 135 mm |
| Auto focus | Yes |
| Focus | Motorized/Manual |
| Identify distance | 270 m |
| Maximum aperture number | 4.4 |
| Minimum aperture number | 1.6 |
| Closest focusing distance | 1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1520 |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Analog signal format system | PAL |
| Video streaming | Yes |
| Noise reduction | Yes |
| Image stabilizer | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3at |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object |
| Motion sensor | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Management software | Smart PSS, DSS |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 24 V |
| Power consumption (typical) | 12 W |
| Power consumption (max) | 20 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 292 mm |
| Diameter | 22.2 cm |
| Weight | 3.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
