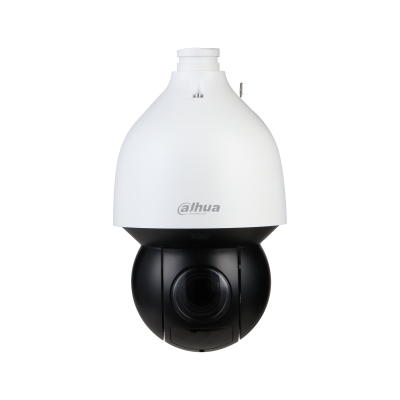

Dahua Technology WizSense DH-SD5A445XA-HNR security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-SD5A445XA-HNR security camera Dome IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling

Model DH-SD5A445XA-HNR

99 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight4.7 kg
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
4.7 kg
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD5A445XA-HNR
Part number
DH-SD5A445XA-HNR
Also known as
Dahua Technology WizSense DH-SD5A445XA-HNR security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Specifications

99 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour
PTZ protocolsDH-SD, Pelco-P/D
Auto-trackingYes
Wide Dynamic Range (WDR)Yes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL:UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Lens viewing angle, horizontal70.3°
Lens viewing angle, vertical37°
Lens viewing angle, diagonal69.3°
Tilt angle range-15 - 90°
Tilt speed300 °/sec
Pan range0 - 360°
Pan preset speed400 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Preset programs quantity300
Camera shutter speed1/3 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom45x
Digital zoom16x
Focal length range3.95 - 177.7 mm
Auto focusYes
FocusManual
Maximum aperture number4.95

Night vision

Night visionYes
Night vision distance150 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions342 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1152, 2048 x 1536 (QXGA), 2560 x 1440
Frame rate30 fps
Image stabilizerYes
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 20480 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711 A-law, G.722.1, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory1024 MB
ROM capacity4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
Active tampering alarmYes
Intelligent Video Surveillance (IVS) system featuresFace detection
Motion sensorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Management softwareSmart Player, Smart PSS, DSS, Easy4ip

Power

Power source typeDC, PoE
Power consumption (typical)11 W
Power consumption (max)20 W
DC output voltage24
DC output current2.5 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Diameter33.2 cm
Length190 mm
Weight4.7 kg

Packaging data

Package weight8 kg

Packaging content

Number of cameras1
Cables includedDC
Mounting kitYes

Technical details

IrisYes
