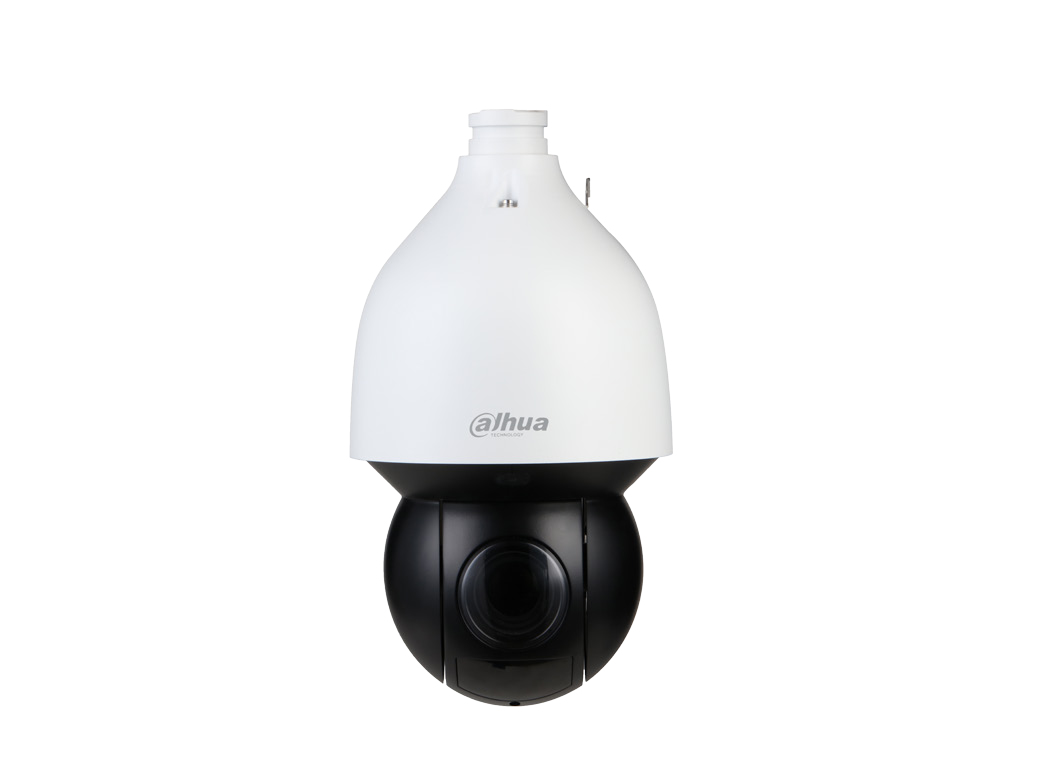

Pro DH-SD5A425XA-HNR Dome IP security camera Outdoor
2560 x 1440 pixels Ceiling/wall
Model DH-SD5A425XA-HNRPart no. SD5A425XA-HNR
97 specifications
- Memory1024 MB
- ConnectivityWired
- TypeIP security camera
- Weight4.7 kg
- ColourWhite
- Form factorDome
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 4.7 kg
- Colour
- White
- Form factor
- Dome
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD5A425XA-HNR
- Part number
- SD5A425XA-HNR
- Also known as
- Dahua Technology Pro DH-SD5A425XA-HNR Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall
Specifications
97 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 8 Tour, Preset point |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: 15 B,ANSI C63.4- 2014 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 59.8° |
| Lens viewing angle, vertical | 33.7° |
| Lens viewing angle, diagonal | 63.3° |
| Tilt angle range | -15 - 90° |
| Tilt speed | 200 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 400 °/sec |
| Pan speed | 300 °/sec |
| White balance | Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 25x |
| Digital zoom | 16x |
| Detect distance | 1724 m |
| Observe distance | 689 m |
| Recognize distance | 344 m |
| Focal length range | 5.8 - 145 mm |
| Focus | Motorized/Manual |
| Identify distance | 172 m |
| Maximum aperture number | 4 |
| Minimum aperture number | 1.6 |
| Closest focusing distance | 0.1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 150 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image stabilizer | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32- 8192Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, PCM |
| Voice codecs | G.711Mu, G.711a, G.722.1, G.723, G.726, G.729 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Internal memory | 1024 MB |
| ROM capacity | 4000 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Intrusion, Missing object, Scene change, Tripwire |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, PoE |
| AC input voltage | 24 V |
| Power consumption (max) | 20 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 332 mm |
| Diameter | 19 cm |
| Weight | 4.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
