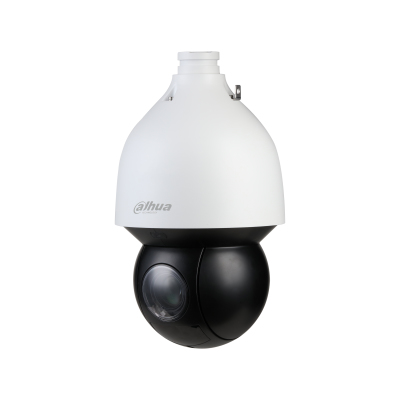

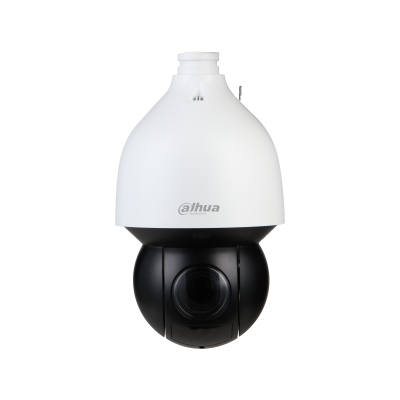

Dahua Technology WizSense DH-SD5A225GB-HNR-SL security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-SD5A225GB-HNR-SL security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model DH-SD5A225GB-HNR-SLEAN 6923172536761

90 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight4.7 kg
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
4.7 kg
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD5A225GB-HNR-SL
Part number
DH-SD5A225GB-HNR-SL
EAN / UPC
6923172536761
Also known as
Dahua Technology WizSense DH-SD5A225GB-HNR-SL security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

90 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern
Auto-trackingYes
Tour recordingYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 IEC 60950-22 IEC 62236-4 IEC 60068-2-6

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Lens viewing angle, horizontal58.5°
Lens viewing angle, vertical33.2°
Lens viewing angle, diagonal67.5°
Tilt angle range-15 - 90°
Tilt manual speed0.1 - 200 °/sec
Tilt speed300 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 300 °/sec
Pan speed400 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30,000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Focal length range4.8 - 120 mm
Auto focusYes
FocusMotorized/Manual
Maximum aperture number1.6
Minimum aperture number3.5
Closest focusing distance0.1 m

Night vision

Night visionYes
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps - 8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedG.711 A-law, G.711 μ-law, G.722.1, G.723, G.726, G.729, PCM
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Supported network protocolsHTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Internal memory1024 MB
ROM capacity4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Motion sensorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)13 W
Power consumption (max)22 W
DC output voltage24

Operational conditions

Operating temperature (T-T)-40 - 70 °C

Weight & dimensions

Height332 mm
Diameter19 cm
Weight4.7 kg

Packaging data

Package weight8 kg

Packaging content

Number of cameras1
