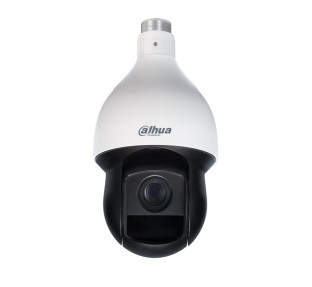

Dahua Technology Pro DH-SD59432XAN-HNR security camera IP security camera Indoor & outdoor

Dahua Technology

Pro DH-SD59432XAN-HNR security camera IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling

Model DH-SD59432XAN-HNR

67 specifications

ConnectivityWired
TypeIP security camera
Weight3.9 kg
ColourBlack, White
Mounting typeCeiling
Camera pan controlYes

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 3.9 kg
Colour: Black, White
Mounting type: Ceiling
Camera pan control: Yes

Brand: Dahua Technology
Category: Security Camera
Model: DH-SD59432XAN-HNR
Part number: DH-SD59432XAN-HNR
Also known as: Dahua Technology Pro DH-SD59432XAN-HNR security camera IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Specifications

67 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014

Design

Specification	Value
Mounting type	Ceiling
Product colour	Black, White
International Protection (IP) code	IP66

Camera

Specification	Value
Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.005 lx
Tilt angle range	-10 - 90°
Tilt speed	300 °/sec
Pan range	0 - 360°
Pan speed	400 °/sec
White balance	Auto, Indoor, Manual, Outdoor, Sodium lamp
Camera shutter type	Electronic
Camera shutter speed	1/3 - 1/100000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	32x
Digital zoom	16x
Focal length range	4.9 - 156 mm
Auto focus	Yes

Night vision

Specification	Value
Night vision	Yes
Night vision distance	150 m
LED type	IR
Number of illumination LEDs	4

Video

Specification	Value
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction, Ultra 2D noise reduction
Gain control type	Auto/Manual
Back Light Compensation (BLC)	Yes
Bit rate	3 - 20480
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirror	Yes
Highlight Compensation (HLC)	Yes
Privacy masking	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Number of users	19 user(s)

Storage

Specification	Value
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1

Security

Specification	Value
Video motion detection	Yes

Management features

Specification	Value
Management software	Smart Player, Smart PSS, DSS, Easy4ip

Power

Specification	Value
Power source type	DC, PoE
Power consumption (typical)	11 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Height	309 mm
Diameter	18.6 cm
Weight	3.9 kg

Packaging data

Specification	Value
Package weight	7.01 kg

Packaging content

Specification	Value
Number of cameras	1
