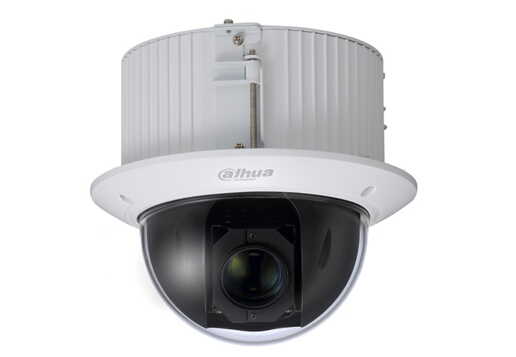

Dahua Technology DH-SD52C430U-HN Dome IP security camera

2688 x 1520 pixels Ceiling

Model DH-SD52C430U-HNPart no. 1.0.01.07.10910

84 specifications

ConnectivityWired
TypeIP security camera
Weight2.2 kg
ColourWhite
Form factorDome
Minimum illumination0.005 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 2.2 kg
Colour: White
Form factor: Dome
Minimum illumination: 0.005 lx

Brand: Dahua Technology
Category: Security Camera
Model: DH-SD52C430U-HN
Part number: 1.0.01.07.10910
Also known as: Dahua Technology DH-SD52C430U-HN Dome IP security camera 2688 x 1520 pixels Ceiling

Specifications

84 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	5 Pattern, 8 Tour, Auto scan, Auto pan
PTZ protocols	DH-SD
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White
Protection features	Temperature proof, Waterproof
International Protection (IP) code	IP67
IK code	IK10

Camera

Specification	Value
Minimum illumination	0.005 lx
Angle of rotation	360°
Lens viewing angle, horizontal	60°
Tilt angle range	0 - 90°
Tilt preset speed	500 °/sec
Tilt speed	250 °/sec
Pan range	0 - 360°
Pan preset speed	500 °/sec
Pan speed	350 °/sec
Auto flip	Yes
White balance	ATW, Auto, Indoor, Manual, Outdoor
Camera shutter speed	1/1 - 1/30000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	30x
Digital zoom	16x
Focal length range	4.5 - 135 mm
Focus	Motorized/Manual
Maximum aperture number	4.4
Minimum aperture number	1.6
Closest focusing distance	1.5 m

Night vision

Specification	Value
Night vision	Yes

Video

Specification	Value
Maximum resolution	2688 x 1520 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1520
Supported video modes	720p, 1080p
Frame rate	30 fps
Analog signal format system	NTSC, PAL
Video streaming	Yes
Noise reduction	Yes
Gain control type	Auto/Manual
Back Light Compensation (BLC)	Yes
Bit rate	H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048Kbps
Flip & mirror	Yes
Full HD	Yes
Highlight Compensation (HLC)	Yes
Privacy masking	Yes

Audio

Specification	Value
Audio input channels	2.0 channels
Audio output channels	1.0 channels
Audio codecs	G.711a/ G.711Mu/ PCM
Signal-to-Noise Ratio (SNR)	50 dB

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af
Supported network protocols	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,
Cabling technology	10/100Base-T(X)
Number of users	20 user(s)
Client interoperability	ONVIF, PSIA, CGI

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Maximum memory card size	128 GB

Ports & interfaces

Specification	Value
Interface	RJ-45

Security

Specification	Value
Intelligent Video Surveillance (IVS) system features	Abandoned object, Face detection, Missing object, Tripwire

Power

Specification	Value
Power source type	PoE
AC input voltage	24 V
Power consumption (typical)	13 W
Power over Ethernet (PoE)	Yes

System requirements

Specification	Value
Mobile operating systems supported	Android, Windows Mobile, iOS

Weight & dimensions

Specification	Value
Height	177 mm
Diameter	19.8 cm
Weight	2.2 kg

Packaging content

Specification	Value
Number of cameras	1

Technical details

Specification	Value
Number of video streams	3
