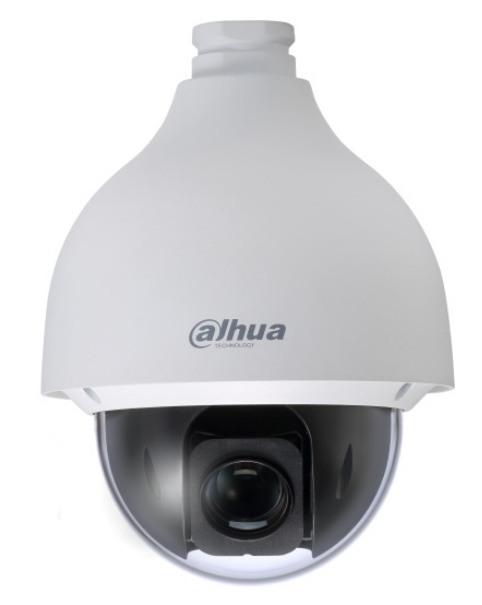

Dahua Technology DH-SD50A230TN-HN security camera Dome IP security camera Indoor & outdoor

Dahua Technology DH-SD50A230TN-HN security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DH-SD50A230TN-HN

78 specifications
  • ConnectivityWired
  • TypeIP security camera
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.005 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Colour
White
Form factor
Dome
Minimum illumination
0.005 lx
Sensor type
CMOS
Brand
Dahua Technology
Model
DH-SD50A230TN-HN
Part number
DH-SD50A230TN-HN
Also known as
Dahua Technology DH-SD50A230TN-HN security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

78 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Auto pan modeYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Protection featuresVandal proof
International Protection (IP) codeIP67
WeatherproofYes

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal67.8°
Tilt angle range0 - 90°
Tilt speed500 °/sec
Pan range0 - 360°
Pan speed500 °/sec
White balanceAWC, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom30x
Digital zoom16x
Focal length range4.5 - 135 mm
Auto focusYes
Maximum aperture number4.4

Night vision

Night visionYes
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, M-JPEG
Video compression formatsH.264, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes240p, 480p, 576p, 720p, 1080p
Frame rate30 fps
Noise reductionYes
Automatic gain controlYes
Flip & mirrorYes
Full HDYes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)55 dB
Voice codecsG.711a

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Security

HTTPS encryptionYes
IP address filteringYes
Security algorithms802.1x RADIUS, HTTPS, SMTP-AUTH, SNMP, SSL/TLS

Power

Power source typePoE
AC input voltage24 V
Power consumption (typical)13 W
Power consumption (max)23 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, Windows Phone, iOS

Weight & dimensions

Height253 mm
Diameter18.6 cm
Length2500 mm

Packaging content

Number of cameras1
