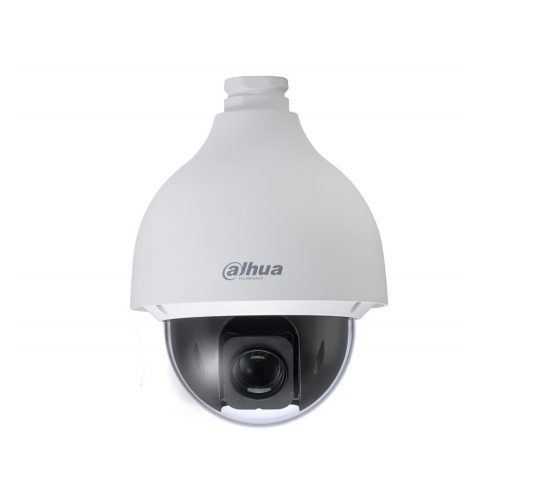

DH-SD50225-HC-LA security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model DH-SD50225-HC-LAEAN 6939554994753
68 specifications
- Memory256 MB
- ConnectivityWired
- TypeCCTV security camera
- Weight2.5 kg
- ColourWhite
- Form factorDome
Overview
- Memory
- 256 MB
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 2.5 kg
- Colour
- White
- Form factor
- Dome
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD50225-HC-LA
- Part number
- DH-SD50225-HC-LA
- EAN / UPC
- 6939554994753
- Also known as
- Dahua Technology DH-SD50225-HC-LA security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
68 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ protocols | Pelco-P/D, DH-SD |
| Wide Dynamic Range (WDR) | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.0005 lx |
| Angle of rotation | 180° |
| Tilt angle range | 0 - 90° |
| Tilt speed | 250 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 500 °/sec |
| Pan speed | 350 °/sec |
| White balance | Auto, Indoor, Lamp, Manual, Natural, Outdoor, Sodium lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 – 1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 25x |
| Digital zoom | 16x |
| Detect distance | 1655 m |
| Observe distance | 654 m |
| Recognize distance | 331 m |
| Focal length range | 4.8 - 128 mm |
| Auto focus | Yes |
| Focus | Manual |
| Identify distance | 165 m |
| Maximum aperture number | 3.5 |
| Minimum aperture number | 1.6 |
| Closest focusing distance | 1.5 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Analog signal format system | PAL |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Voice codecs | G.711Mu, G.711a |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Internal memory | 256 MB |
| ROM capacity | 16 MB |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 15.5 W |
| Power consumption (max) | 18.5 W |
| DC output voltage | 24 |
| DC output current | 2.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 253 mm |
| Diameter | 18.6 cm |
| Weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
