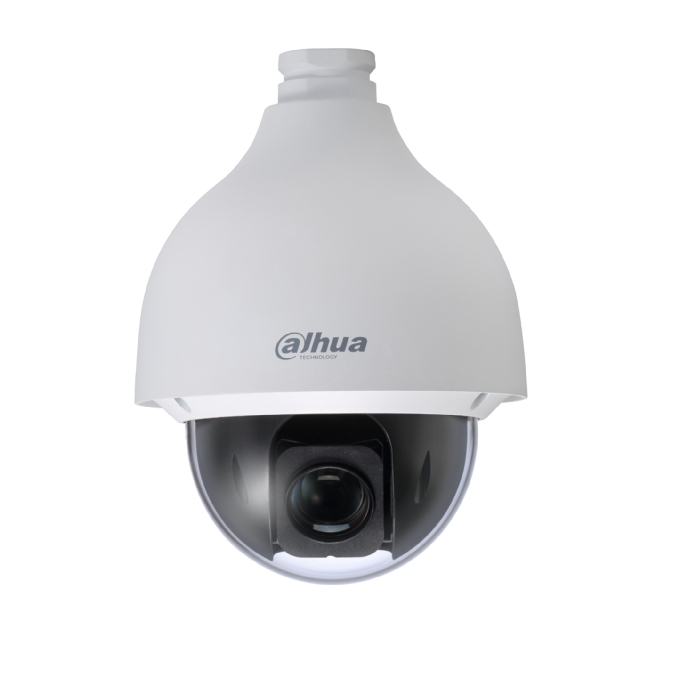

Dahua Technology DH-SD50220T-HN Dome IP security camera Outdoor
Dahua Technology

DH-SD50220T-HN Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-SD50220T-HNPart no. SD50220T-HNEAN 6939554903021

94 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.5 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
2.5 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD50220T-HN
Part number
SD50220T-HN
EAN / UPC
6939554903021
Also known as
Dahua Technology DH-SD50220T-HN Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

94 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan
PTZ protocolsDH-SD
Tour recordingYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Field of view (FOV) angle56.1°
Tilt angle range0 - 90°
Tilt speed250 °/sec
Pan range0 - 360°
Pan preset speed500 °/sec
Pan speed350 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom20x
Digital zoom16x
Focal length range4.7 - 94 mm
Auto focusYes
Maximum aperture number2.6
Minimum aperture number1.4
Closest focusing distance0.1 m

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264+/H.264: 448 K ~ 8192 Kbps: MJPEG: 5120 K ~ 10240 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsG.711a, G.711u, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeAC, PoE
AC input voltage24 V
Power consumption (max)23 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, Windows Phone, iOS

Weight & dimensions

Height253 mm
Diameter18.6 cm
Weight2.5 kg

Packaging data

Package weight4.5 kg

Packaging content

Number of cameras1
