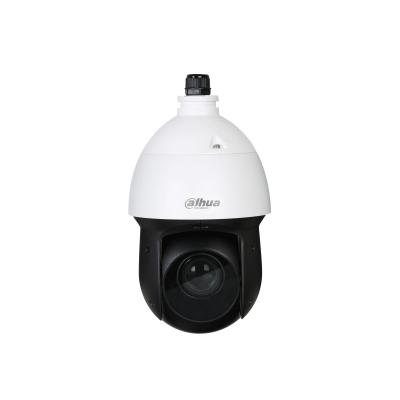

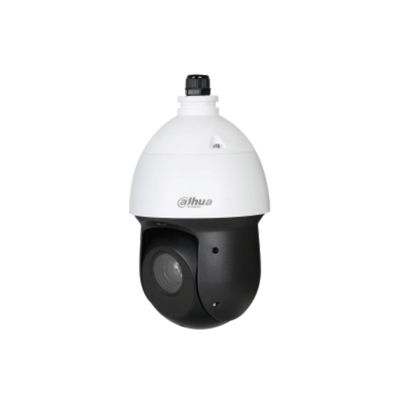

Dahua Technology WizSense DH-SD49225ZB-HNR security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-SD49225ZB-HNR security camera Dome IP security camera Indoor & outdoor

1920 x 1020 pixels Ceiling

Model DH-SD49225ZB-HNREAN 6923172531551

87 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.8 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
2.8 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD49225ZB-HNR
Part number
DH-SD49225ZB-HNR
EAN / UPC
6923172531551
Also known as
Dahua Technology WizSense DH-SD49225ZB-HNR security camera Dome IP security camera Indoor & outdoor 1920 x 1020 pixels Ceiling

Specifications

87 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, Auto scan
PTZ protocolsDH-SD, Pelco-P/D
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP66
WeatherproofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal56.2 - 2.6°
Lens viewing angle, vertical32.5 - 1.5°
Lens viewing angle, diagonal63.2 - 3°
Tilt angle range-15 - 90°
Tilt preset speed100 °/sec
Tilt speed100 °/sec
Pan range0 - 360°
Pan preset speed200 °/sec
Pan speed200 °/sec
Auto flipYes
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 s–1/30,000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom25x
Focal length range4.8 - 120 mm
Auto focusYes
Maximum aperture number3.8
Minimum aperture number1.6
Closest focusing distance1.5 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1020 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.264M, H.265, H.265+, M-JPEG
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsHTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Number of users20 user(s)

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Internal memory512 MB
ROM capacity265 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
Digital watermarkYes
Intelligent Video Surveillance (IVS) system featuresFace detection, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Management softwareSmart PSS; DSS; IVSS; Configtool; NVR; Smart Player

Power

Power source typeDC, PoE
Power consumption (typical)12 W
Power consumption (max)21 W
DC output current12 A

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width160 mm
Height295 mm
Weight2.8 kg

Packaging content

Number of cameras1
