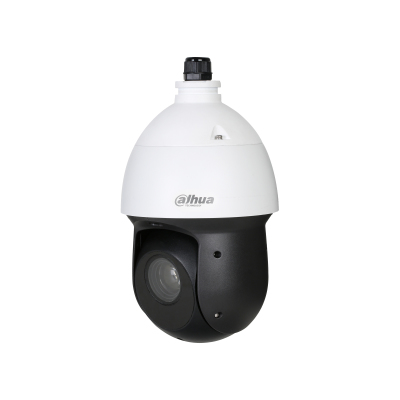

WizSense DH-SD49225XA-HNR security camera Dome Indoor & outdoor
1920 x 1080 pixels
Model DH-SD49225XA-HNREAN 6939554979446
53 specifications
- Memory1024 MB
- ConnectivityWired
- TypeDome
- Weight3 kg
- ColourBlack, White
- Placement supportedIndoor & outdoor
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Type
- Dome
- Weight
- 3 kg
- Colour
- Black, White
- Placement supported
- Indoor & outdoor
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD49225XA-HNR
- Part number
- DH-SD49225XA-HNR
- EAN / UPC
- 6939554979446
- Also known as
- Dahua Technology WizSense DH-SD49225XA-HNR security camera Dome Indoor & outdoor 1920 x 1080 pixels
Specifications
53 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Product colour | Black, White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Tilt angle range | -15 - 90° |
| Tilt speed | 200 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 240 °/sec |
| Pan speed | 200 °/sec |
| Auto flip | Yes |
| White balance | Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp |
| Camera shutter speed | 1/1 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 25x |
| Digital zoom | 16x |
| Detect distance | 1613 m |
| Observe distance | 646 m |
| Recognize distance | 323 m |
| Focal length range | 4.8 - 120 mm |
| Identify distance | 161 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 100 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 A-law, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
Storage
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| ROM capacity | 4096 MB |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
| DC output current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 295 mm |
| Diameter | 16 cm |
| Weight | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
