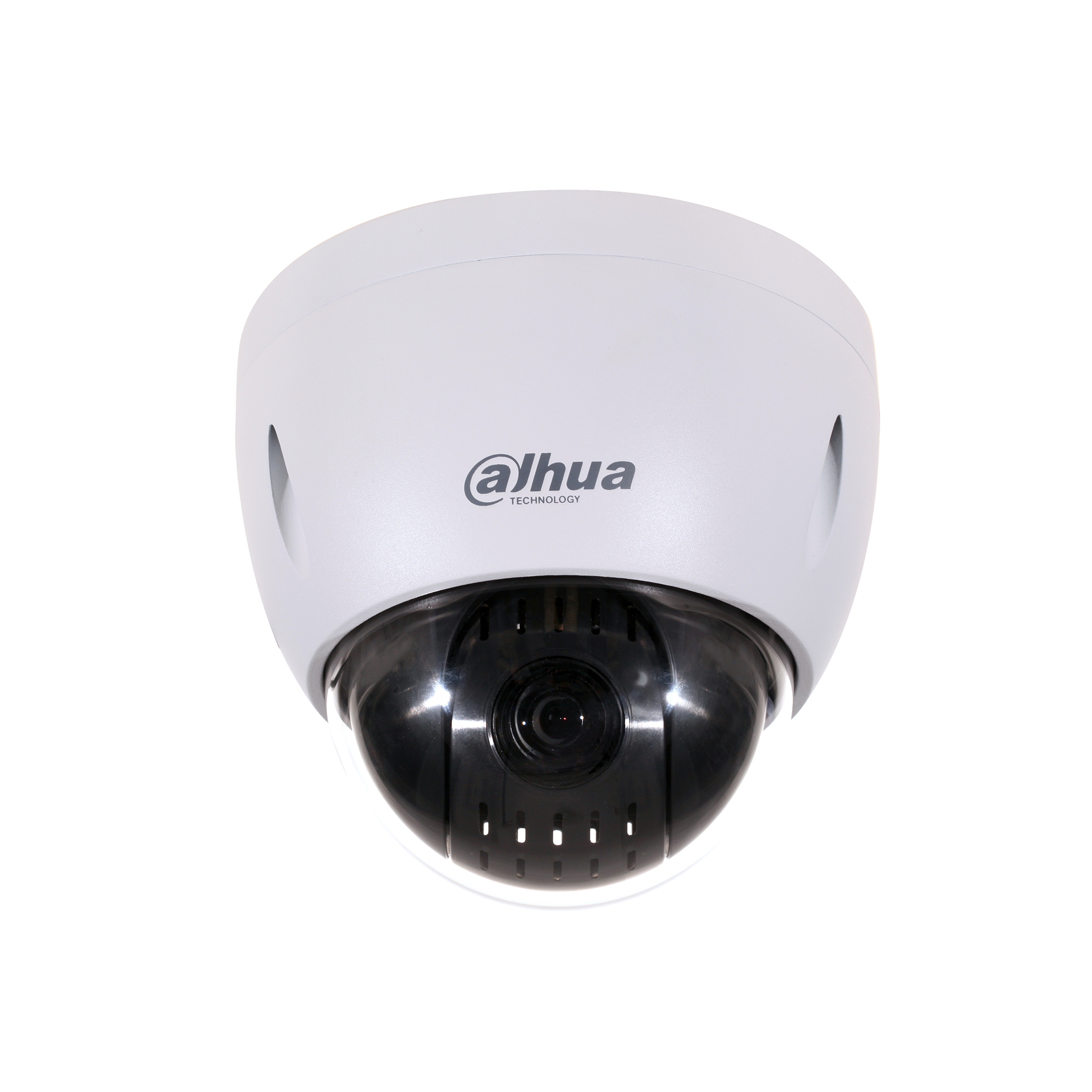

Lite DH-SD42212I-HC Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model DH-SD42212I-HCPart no. DH-SD42212I-HC-S3EAN 6939554903311
70 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight1.8 kg
- Form factorDome
- Minimum illumination0.0005 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 1.8 kg
- Form factor
- Dome
- Minimum illumination
- 0.0005 lx
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD42212I-HC
- Part numbers
- DH-SD42212I-HC-S3, DH-SD42212I-HC
- EAN / UPC
- 6939554903311, 6939554938818
- Also known as
- Dahua Technology Lite DH-SD42212I-HC Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
70 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 5 Pattern, 8 Tour, Auto scan, Auto pan |
| PTZ protocols | Pelco-P/D, DH-SD |
| Auto pan mode | Yes |
| Preset points | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4, FCC: Part15 subpartB,ANSI C63.4- 2014, UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Housing material | Metal |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.0005 lx |
| Lens viewing angle, horizontal | 58.2° |
| Tilt angle range | -2 - 90° |
| Tilt speed | 120 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 300 °/sec |
| Pan speed | 300 °/sec |
| Auto flip | Yes |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 16x |
| Focal length range | 5.3 - 6.4 mm |
| Maximum aperture number | 3 |
| Minimum aperture number | 1.6 |
| Closest focusing distance | 0.1 m |
| Detect distance (wide) | 883 m |
| Identify distance (wide) | 88 m |
| Observe distance (wide) | 353 m |
| Recognize distance (wide) | 177 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 50 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 155 mm |
| Diameter | 17 cm |
| Weight | 1.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.3 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
