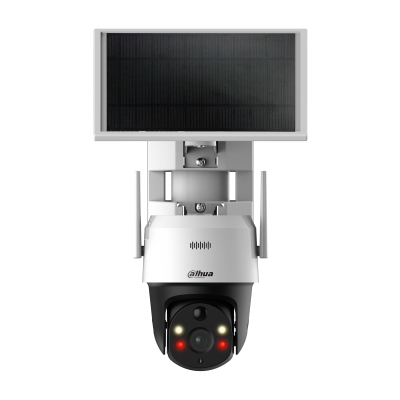

Dahua Technology Lite DH-SD2A200HB-GN-AGQ-PV-SP-LA security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Lite DH-SD2A200HB-GN-AGQ-PV-SP-LA security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Wall/Pole

Model DH-SD2A200HB-GN-AGQ-PV-SP-LA

109 specifications
  • Memory256 MB
  • Battery10000 mAh
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight1.4 kg
  • ColourWhite
See all specifications

Overview

Memory
256 MB
Battery
10000 mAh
Connectivity
Wired & Wireless
Type
IP security camera
Weight
1.4 kg
Colour
White
Brand
Dahua Technology
Model
DH-SD2A200HB-GN-AGQ-PV-SP-LA
Part number
DH-SD2A200HB-GN-AGQ-PV-SP-LA
Also known as
Dahua Technology Lite DH-SD2A200HB-GN-AGQ-PV-SP-LA security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Wall/Pole

Specifications

109 specifications in 22 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15; Subpart B

Design

Form factorDome
Mounting typeWall/Pole
Product colourWhite
International Protection (IP) codeIP66

Camera

Minimum illumination0 lx
Angle of rotation180°
Lens viewing angle, horizontal84°
Lens viewing angle, vertical42°
Lens viewing angle, diagonal101°
Tilt angle range0 - 80°
Tilt preset speed36.3 °/sec
Tilt speed74 °/sec
Pan range0 - 345°
Pan preset speed62 °/sec
Pan speed36.4 °/sec
White balanceATW, Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Detect distance86 m
Observe distance34.4 m
Recognize distance17.2 m
Identify distance8.6 m
Maximum aperture number1.6
Closest focusing distance2 m
Fixed focal length4 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR/White

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264B, H.264H, H.265
Supported graphics resolutions352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)55 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726, PCM
Bit rate range32 - 8192 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SMB; NFS
Mobile network connectionYes
Mobile network generation4G
3G standardsWCDMA
4G standardLTE
2G standardsGSM
Number of users20 user(s)
Streaming methodMulticast, Unicast
Client interoperabilityONVIF (Profile S&G&T);CGI;SDK;P2P

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Motion sensorYes
Motion sensor technologyPassive infrared (PIR) sensor
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Web browserYes
Management softwareDMSS

Power

Power source typeDC, Solar
Power consumption (max)10 W
DC output voltage5.4
DC output current3 A
Battery voltage3.6 V

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery capacity10000 mAh
Battery weight192 g
Rechargeable batteryYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width247 mm
Depth336 mm
Height223 mm
Weight1.4 kg

Packaging data

Package weight2.14 kg

Packaging content

Number of cameras1

Other features

Browser supportedIE 9 and later versions Chrome 41 and earlier versions Firefox 50 and earlier versions iOS 10 and later versions

Technical details

Number of video streams2
