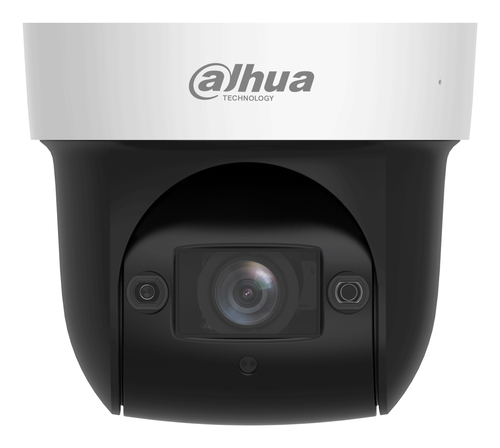

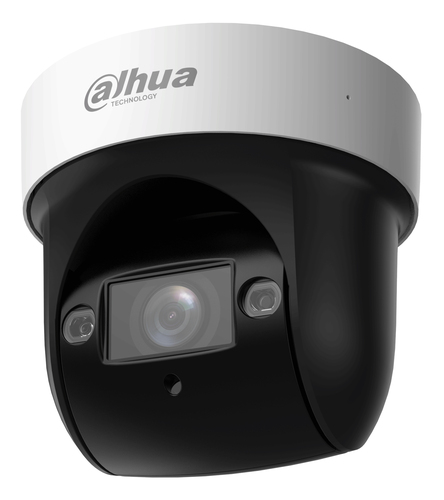

Dahua Technology DH-SD29404DB-GNY security camera Dome IP security camera Indoor & outdoor
Dahua Technology

DH-SD29404DB-GNY security camera Dome IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/wall

Model DH-SD29404DB-GNYEAN 6923172569080

93 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight713 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
713 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD29404DB-GNY
Part number
DH-SD29404DB-GNY
EAN / UPC
6923172569080
Also known as
Dahua Technology DH-SD29404DB-GNY security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

93 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 5 Scan, 8 Tour
PTZ protocolsDH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN 50130-4/EN 55035/EN61000-3-2/ EN61000-3-3

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
Fog proofYes

Camera

Minimum illumination0.0005 lx
Tilt angle range0 - 90°
Tilt preset speed60 °/sec
Tilt speed60 °/sec
Pan range0 - 360°
Pan preset speed100 °/sec
Pan speed100 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Preset programs quantity300
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Detect distance171 m
Observe distance67 m
Recognize distance34 m
Focal length range2.8 - 12 mm
FocusMotorized/Manual
Identify distance17 m
Maximum aperture number1.6
Closest focusing distance1.5 m

Night vision

Night visionYes
Night vision distance50 m

Video

Maximum resolution2560 x 1440 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Bit rateH264: 24 Kbps–13056 Kbps H265: 9 Kbps–7936 Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio codecsG.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsFTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast
Client interoperabilityCGI; SDK; ONVIF (Profile S&G&T); P2P

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

InterfaceRJ-45

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Motion sensorYes

Management features

Web browserYes
Management softwareSmart PSS, DSS

Power

Power source typePoE
Power consumption (typical)5 W
Power consumption (max)10 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height117.4 mm
Diameter13.2 cm
Weight713 g

Packaging data

Package weight1 kg

Packaging content

Number of cameras1

Other features

Browser supportedIE, Chrome, Firefox, Safari

Technical details

Number of video streams3
