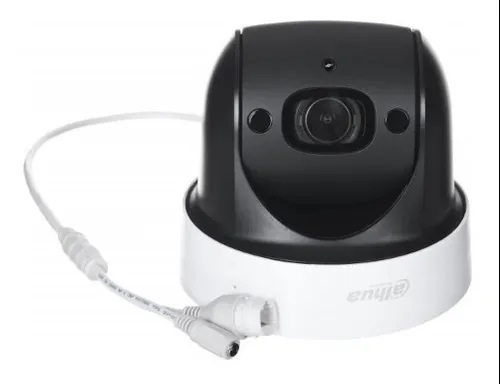

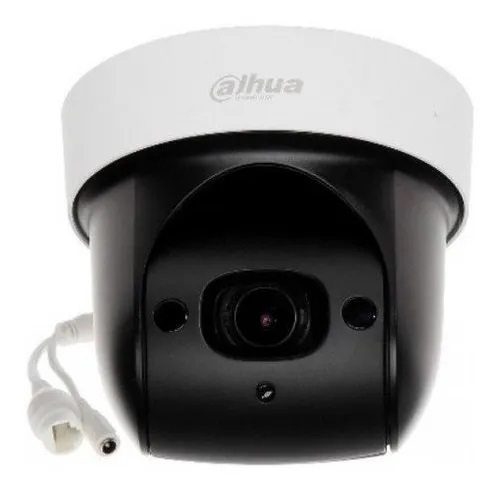

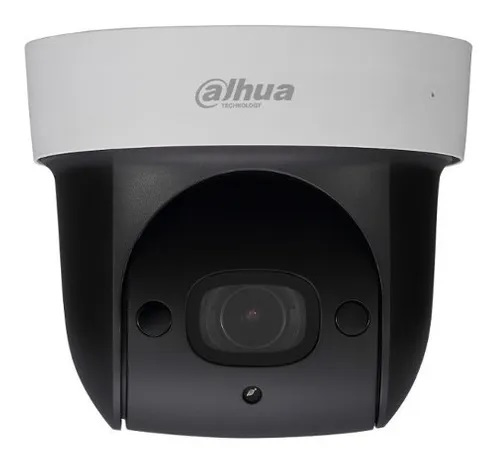

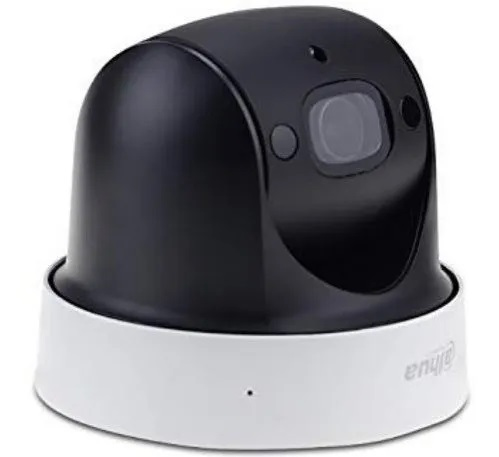

Lite DH-SD29204UEN-GN security camera Dome IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model DH-SD29204UEN-GN
52 specifications
- ConnectivityWired
- TypeIP security camera
- Weight950 g
- ColourBlack
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 950 g
- Colour
- Black
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD29204UEN-GN
- Part number
- DH-SD29204UEN-GN
- Also known as
- Dahua Technology Lite DH-SD29204UEN-GN security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
52 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Tilt angle range | 0 - 90° |
| Tilt speed | 60 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 100 °/sec |
| Pan speed | 100 °/sec |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 4x |
| Digital zoom | 16x |
| Detect distance | 120 m |
| Observe distance | 48 m |
| Recognize distance | 24 m |
| Lens diameter | 2.7 mm |
| Auto focus | Yes |
| Identify distance | 12 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 10 W |
| Power consumption (max) | 13 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 117.9 mm |
| Diameter | 13.3 cm |
| Weight | 950 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
