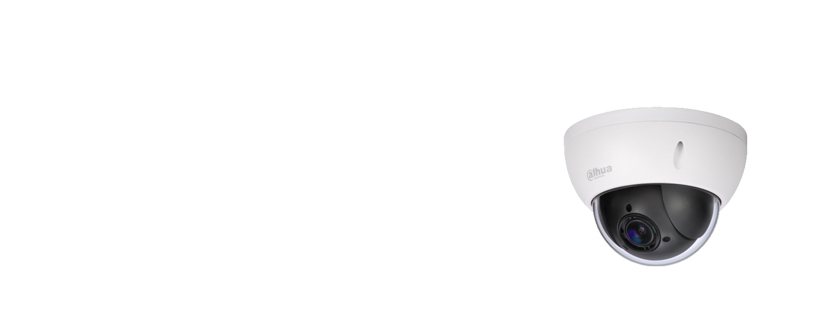

Dahua Technology DH-SD22A204TN-GNI security camera Dome IP security camera Indoor & outdoor

Dahua Technology DH-SD22A204TN-GNI security camera Dome IP security camera Indoor & outdoor

1944 x 1092 pixels Ceiling/wall

Model DH-SD22A204TN-GNI

64 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Dome
Minimum illumination
0.005 lx
Brand
Dahua Technology
Model
DH-SD22A204TN-GNI
Part number
DH-SD22A204TN-GNI
Also known as
Dahua Technology DH-SD22A204TN-GNI security camera Dome IP security camera Indoor & outdoor 1944 x 1092 pixels Ceiling/wall

Specifications

64 specifications in 15 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Tour recordingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal, Plastic
Protection featuresVandal proof
International Protection (IP) codeIP66

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal93.5°
Tilt angle range0 - 90°
Tilt speed60 °/sec
Pan range0 - 355°
Pan speed100 °/sec
Camera shutter typeElectronic
Camera shutter speed1/1 ~ 1/ 30.000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Focal length range2.7 - 11 mm
Auto focusYes
Maximum aperture number2.8

Video

Maximum resolution1944 x 1092 pixels
Total megapixels2 MP
Video compression formatsH.264, M-JPEG
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Noise reductionYes
Automatic gain controlYes
Flip & mirrorYes
Privacy maskingYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Maximum memory card size128 GB

Ports & interfaces

InterfaceRJ-45

Security

IP address filteringYes
Video motion detectionYes

Power

Power source typePoE
Power consumption (max)10 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Depth89 mm
Diameter12.2 cm
Weight500 g

Packaging content

Number of cameras1

Technical details

IrisYes
