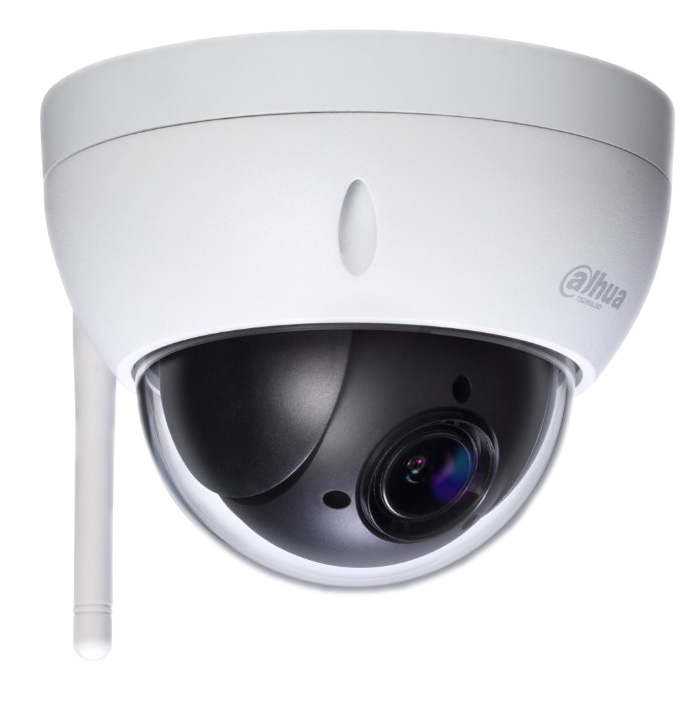

Dahua Technology Lite DH-SD22204UE-GN-W security camera Dome IP security camera Outdoor
Dahua Technology

Lite DH-SD22204UE-GN-W security camera Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-SD22204UE-GN-W

90 specifications
  • Memory256 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight520 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
520 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD22204UE-GN-W
Part number
DH-SD22204UE-GN-W
Also known as
Dahua Technology Lite DH-SD22204UE-GN-W security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

90 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired & Wireless
PTZ controlYes
PTZ modes8 Tour, Preset point
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: 15 B,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP66
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Lens viewing angle, horizontal112.5°
Tilt angle range0 - 90°
Tilt speed60 °/sec
Pan range0 - 355°
Pan preset speed100 °/sec
Pan speed100 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Detect distance124.1 m
Observe distance49.7 m
Recognize distance24.8 m
Focal length range2.7 - 11 mm
FocusMotorized/Manual
Identify distance12.4 m
Maximum aperture number1.6
Closest focusing distance0.1 m

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate448K - 8192Kbps, 5120K - 10240Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC
Power consumption (max)5.5 W
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height89 mm
Diameter12.2 cm
Weight520 g

Packaging data

Package weight730 g

Packaging content

Number of cameras1
