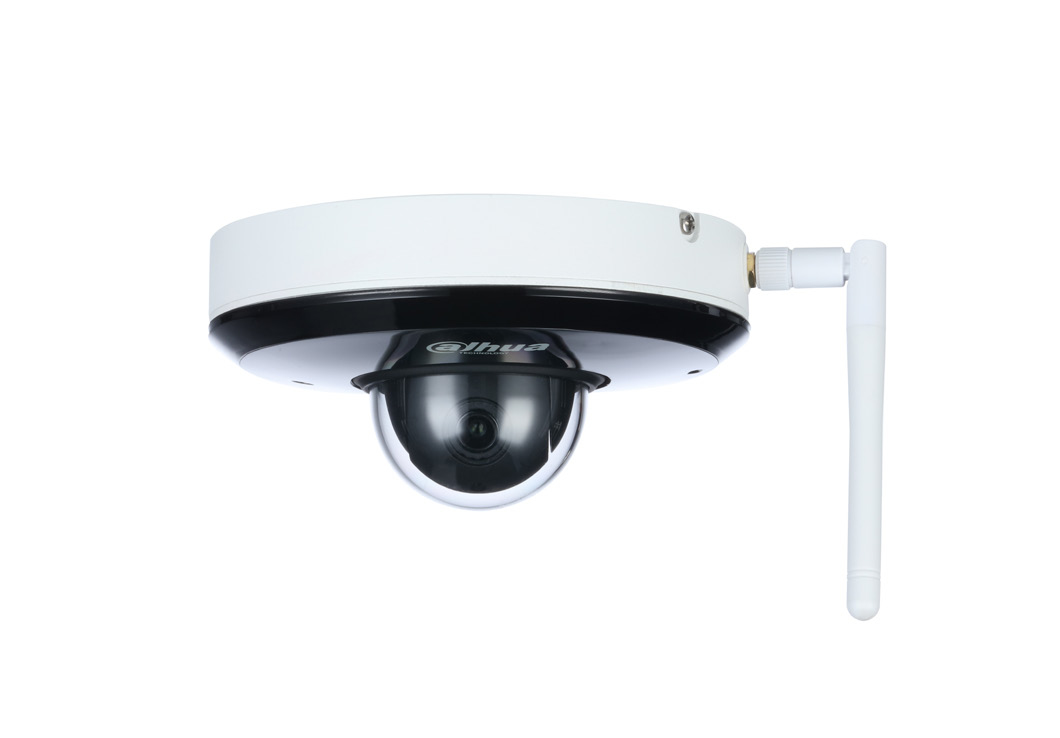

Dahua Technology Lite DH-SD1A404XB-GNR-W Dome IP security camera Outdoor
Dahua Technology

Lite DH-SD1A404XB-GNR-W Dome IP security camera Outdoor

2560 x 1440 pixels Ceiling/wall

Model DH-SD1A404XB-GNR-WPart no. SD1A404XB-GNR-W

98 specifications
  • Memory1024 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight485 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
485 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD1A404XB-GNR-W
Part number
SD1A404XB-GNR-W
Also known as
Dahua Technology Lite DH-SD1A404XB-GNR-W Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

98 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired & Wireless
PTZ controlYes
PTZ modes8 Tour, Preset point
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: 15 B, ANSI C63.4-2014

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP66
IK codeIK08

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Lens viewing angle, horizontal31.6°
Lens viewing angle, vertical17.8°
Lens viewing angle, diagonal36.4°
Tilt angle range5 - 90°
Tilt speed30 °/sec
Pan range0 - 355°
Pan preset speed80 °/sec
Pan speed70 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Detect distance147 m
Observe distance58.8 m
Recognize distance29.4 m
Focal length range2.8 - 12 mm
FocusMotorized/Manual
Identify distance14.7 m
Maximum aperture number2.7
Minimum aperture number1.8
Closest focusing distance0.2 m

Night vision

Night visionYes
Night vision distance15 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Supported video modes720p, 1080p
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps–20480 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedAAC
Voice codecsG.711Mu, G.711a, G.722.1, G.723, G.726, G.729

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1024 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, People counting, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC
Power consumption (max)8.5 W
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height65.4 mm
Diameter12.8 cm
Weight485 g

Packaging data

Package weight700 g

Packaging content

Number of cameras1
