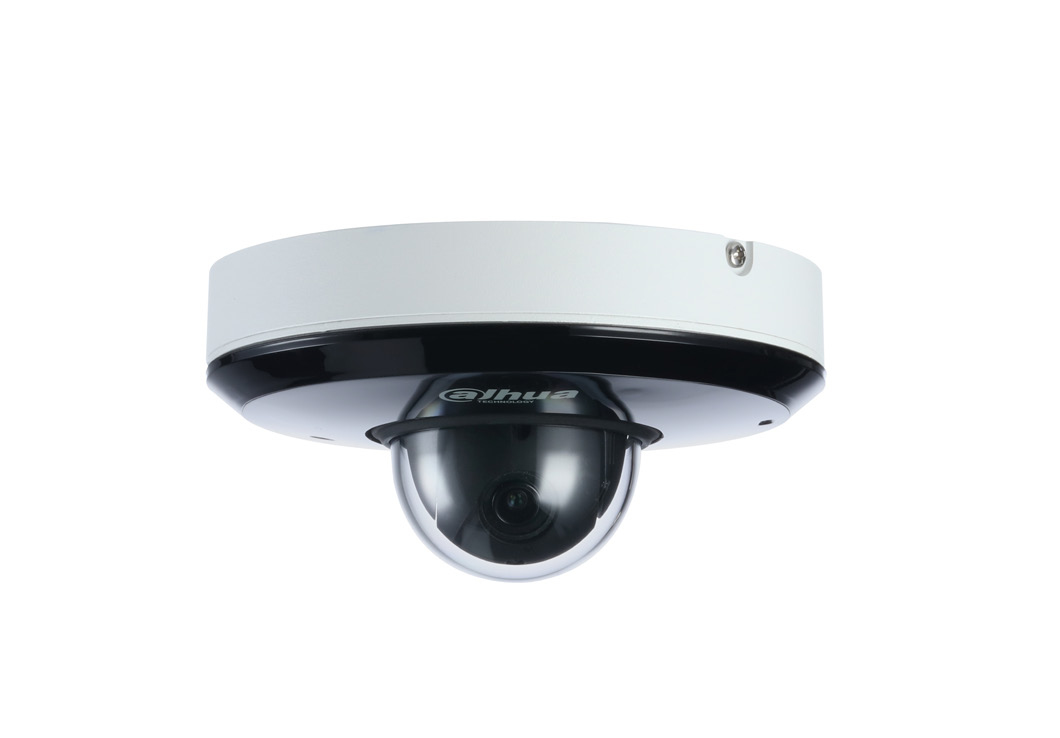

Dahua Technology Lite DH-SD1A404XB-GNR Dome IP security camera Outdoor
Dahua Technology

Lite DH-SD1A404XB-GNR Dome IP security camera Outdoor

2560 x 1440 pixels Ceiling/wall

Model DH-SD1A404XB-GNRPart no. SD1A404XB-GNREAN 6939554926013

96 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight485 g
  • ColourBlack, White
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
485 g
Colour
Black, White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-SD1A404XB-GNR
Part numbers
SD1A404XB-GNR, DH-SD1A404XB-GNR
EAN / UPC
6939554926013
Also known as
Dahua Technology Lite DH-SD1A404XB-GNR Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

96 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Preset point
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: 15 B, ANSI C63.4-2014

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP66
IK codeIK08

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Lens viewing angle, horizontal31.6°
Lens viewing angle, vertical17.8°
Lens viewing angle, diagonal36.4°
Tilt angle range5 - 90°
Tilt speed30 °/sec
Pan range0 - 355°
Pan preset speed80 °/sec
Pan speed70 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Detect distance147 m
Observe distance58.8 m
Recognize distance29.4 m
Focal length range2.8 - 12 mm
FocusMotorized/Manual
Identify distance14.7 m
Maximum aperture number2.7
Minimum aperture number1.8
Closest focusing distance0.2 m

Night vision

Night visionYes
Night vision distance15 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps-20480 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Voice codecsG.711Mu, G.711a, G.722.1, G.723, G.726, G.729

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, People counting, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)8.5 W
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height65.4 mm
Diameter12.8 cm
Weight485 g

Packaging data

Package weight700 g

Packaging content

Number of cameras1
