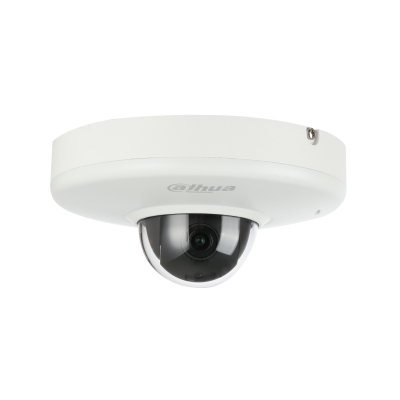

Lite DH-SD12200T-GN Dome IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model DH-SD12200T-GNPart no. SD12200T-GN-0280BEAN 6939554922589
94 specifications
- Memory512 MB
- ConnectivityWired
- TypeIP security camera
- Weight485 g
- ColourWhite
- Form factorDome
Overview
- Memory
- 512 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 485 g
- Colour
- White
- Form factor
- Dome
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD12200T-GN
- Part number
- SD12200T-GN-0280B
- EAN / UPC
- 6939554922589
- Also known as
- Dahua Technology Lite DH-SD12200T-GN Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
94 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 8 Tour, Auto pan |
| PTZ protocols | DH-SD |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Remote viewing | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Vandal proof |
| International Protection (IP) code | IP67 |
| IK code | IK08 |
| Fog proof | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.0005 lx |
| Lens viewing angle, horizontal | 102.9° |
| Lens viewing angle, vertical | 54.9° |
| Tilt angle range | 20 - 90° |
| Tilt speed | 30 °/sec |
| Pan range | 0 - 355° |
| Pan preset speed | 80 °/sec |
| Pan speed | 70 °/sec |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
| Camera shutter speed | 1 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 16x |
| Detect distance | 41.4 m |
| Observe distance | 16.6 m |
| Recognize distance | 8.3 m |
| Fixed focus | Yes |
| Identify distance | 4.1 m |
| Maximum aperture number | 1.6 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 25 fps |
| Analog signal format system | PAL |
| Video streaming | Yes |
| Noise reduction | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.265/H.264: 448K ~ 8192Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 A-law, G.711 μ-law, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Internal memory | 512 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object, Tripwire |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 6 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 63 mm |
| Diameter | 12.8 cm |
| Weight | 485 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
