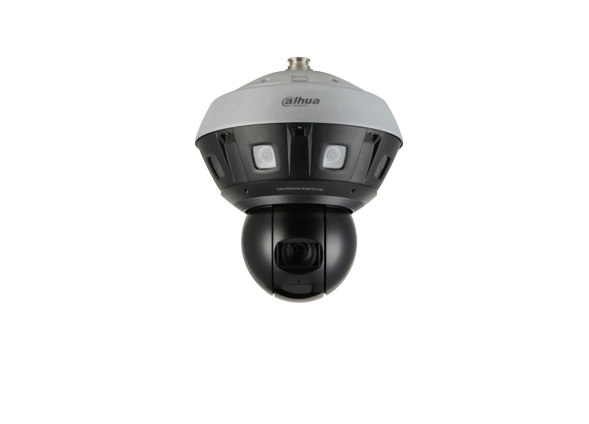

Dahua Technology WizMind DH-PSDW81642M-A360-D440 security camera IP security camera Outdoor Ceiling/Wall/Pole
Dahua Technology

WizMind DH-PSDW81642M-A360-D440 security camera IP security camera Outdoor Ceiling/Wall/Pole

Model DH-PSDW81642M-A360-D440

100 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight14.7 kg
  • ColourBlack, Grey
  • Mounting typeCeiling/Wall/Pole
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
14.7 kg
Colour
Black, Grey
Mounting type
Ceiling/Wall/Pole
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-PSDW81642M-A360-D440
Part number
DH-PSDW81642M-A360-D440
Also known as
Dahua Technology WizMind DH-PSDW81642M-A360-D440 security camera IP security camera Outdoor Ceiling/Wall/Pole

Specifications

100 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Auto scan, Digital PTZ, Preset point
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Mounting typeCeiling/Wall/Pole
Product colourBlack, Grey
Housing materialMetal, Plastic
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0008 lx
Lens viewing angle, horizontal2 - 61°
Lens viewing angle, vertical1 - 36°
Lens viewing angle, diagonal3 - 68°
Tilt angle range-11 - 90°
Tilt speed100 °/sec
Pan range0 - 360°
Pan speed240 °/sec
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 s-1/300000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)2560 x 1440 pixels

Panoramic camera

Sensor type (panoramic camera)CMOS
Optical sensor size (panoramic camera)25.4 / 1.8 mm (1 / 1.8")
Maximum resolution (panoramic camera)8192 x 1800 pixels
Camera shutter type (panoramic camera)Electronic
Camera shutter speed (panoramic camera)1/3 s-1/100000
Minimum illumination (panoramic camera)0.01 lx
Bit rate (panoramic camera)256 - 42995 Kbps
Bit rate control (panoramic camera)Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Detect distance (wide) (panoramic camera)53.3 m
Focal length range (panoramic camera)5 mm
Identify distance (wide) (panoramic camera)5.3 m
Maximum aperture number (panoramic camera)2
Number of Privacy masking areas (panoramic camera)4
Observe distance (wide) (panoramic camera)21.3 m
Recognize distance (wide) (panoramic camera)10.7 m
Supported graphics resolutions (panoramic camera)8192 x 1800, 7680 x 1680, 5760 x 1264, 4800 x 3840, 4096 x 900, 3840 x 832, 3200 x 2560, 2560 x 560, 2048 x 452, 1600 x 1280
Viewing angle, horizontal (panoramic camera)360°
Viewing angle, vertical (panoramic camera)84°

Lens system

Zoom capabilityYes
Detect distance2873.1 m
Observe distance1149.2 m
Recognize distance574.6 m
Identify distance287.3 m
Maximum aperture number1.3

Night vision

Night visionYes
Night vision distance400 m
LED typeIR
Number of illumination LEDs7

Video

Video compression formatsH.264, H.264B, H.264H, H.265
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels2.0 channels
Audio output channels2.0 channels
Audio formats supportedAAC, G.711 A-law, G.726
Bit rate range110 - 15104 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/IPv6; SNMP; QoS; UPnP; NTP

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)

Ports & interfaces

RS-485 ports1
BNC output ports1

Security

Alarm input channels7
Alarm output channels3
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC
Power consumption (typical)84.4 W
DC output voltage36

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height389.8 mm
Diameter38.3 cm
Weight14.7 kg

Packaging data

Package weight19.8 kg

Other features

Browser supportedIE, Chrome, Firefox, Safari

Technical details

Number of video streams3
