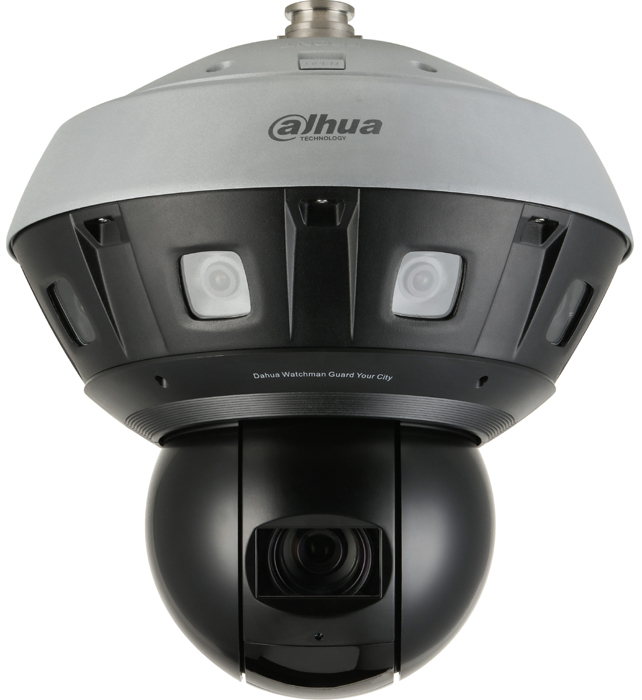

Dahua Technology Ultra DH-PSDW81642M-A360 Dome IP security camera Outdoor
Dahua Technology

Ultra DH-PSDW81642M-A360 Dome IP security camera Outdoor

8192 x 1800 pixels Ceiling/wall

Model DH-PSDW81642M-A360Part no. PSDW81642M-A360

89 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight14.7 kg
  • ColourBlack, Grey
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
14.7 kg
Colour
Black, Grey
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-PSDW81642M-A360
Part number
PSDW81642M-A360
Also known as
Dahua Technology Ultra DH-PSDW81642M-A360 Dome IP security camera Outdoor 8192 x 1800 pixels Ceiling/wall

Specifications

89 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan, Preset point
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationUL 60950-1 CAN/CSA C22.2 No. 60950-1-07 47 CFR FCC 15 B, A ANSI C63.4:2014

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, Grey
Housing materialMetal, Plastic
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.008 lx
Lens viewing angle, horizontal61°
Lens viewing angle, vertical36°
Lens viewing angle, diagonal68°
Tilt angle range-20 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan speed240 °/sec
Auto flipYes
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors9
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom40x
Digital zoom16x
Focal length range5.6 - 223 mm
FocusMotorized
Maximum aperture number1.3
Closest focusing distance0.5 m

Night vision

Night visionYes
Night vision distance400 m
LED typeIR
Number of illumination LEDs7

Video

Maximum resolution8192 x 1800 pixels
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 704 x 480, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels2.0 channels
Audio output channels2.0 channels
Audio formats supportedAAC
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsHTTP, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
BNC output ports1

Security

Video motion detectionYes

Power

Power source typeDC
Power consumption (max)84.4 W
DC output voltage36

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height389.8 mm
Diameter38.3 cm
Weight14.7 kg

Packaging data

Package weight19.8 kg

Packaging content

Number of cameras1
