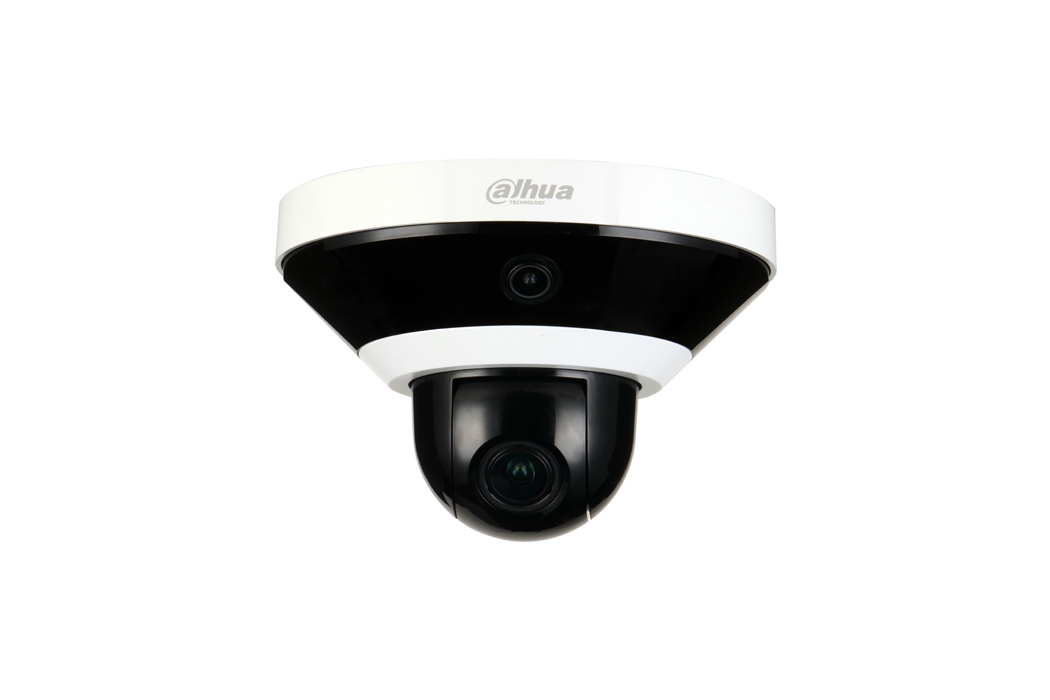

Dahua Technology Panoramic DH-PSDW5631SN-B360 security camera Turret IP security camera Indoor & outdoor
Dahua Technology

Panoramic DH-PSDW5631SN-B360 security camera Turret IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DH-PSDW5631SN-B360

104 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight780 g
  • ColourBlack, White
  • Form factorTurret
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
780 g
Colour
Black, White
Form factor
Turret
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-PSDW5631SN-B360
Part number
DH-PSDW5631SN-B360
Also known as
Dahua Technology Panoramic DH-PSDW5631SN-B360 security camera Turret IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

104 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE, UL, FCC

Design

Form factorTurret
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal, Plastic

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.02 lx
Lens viewing angle, horizontal105.9°
Lens viewing angle, vertical56°
Tilt angle range0 - 80°
Tilt speed40 °/sec
Pan range0 - 355°
Pan preset speed51 °/sec
Pan speed51 °/sec
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1 - 1/30000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Optical zoom5x
Digital zoom16x
Focal length range2.7 - 13.5 mm
FocusMotorized
Maximum aperture number1.8
Detect distance (tele)133 m
Detect distance (wide)44 m
Identify distance (tele)13 m
Identify distance (wide)4.5 m
Observe distance (tele)53 m
Observe distance (wide)18 m
Recognize distance (tele)26 m
Recognize distance (wide)9 m

Night vision

Night visionYes
Night vision distance15 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate25 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;D NS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1 x;Multicast;ICMP;IGMP;SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
DC-in jackYes

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)14.8 W
Power consumption (Power over Ethernet (PoE))16.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height123.4 mm
Diameter17.2 cm
Weight780 g

Packaging data

Package weight1.13 kg
Package typeBox

Packaging content

Number of cameras1
