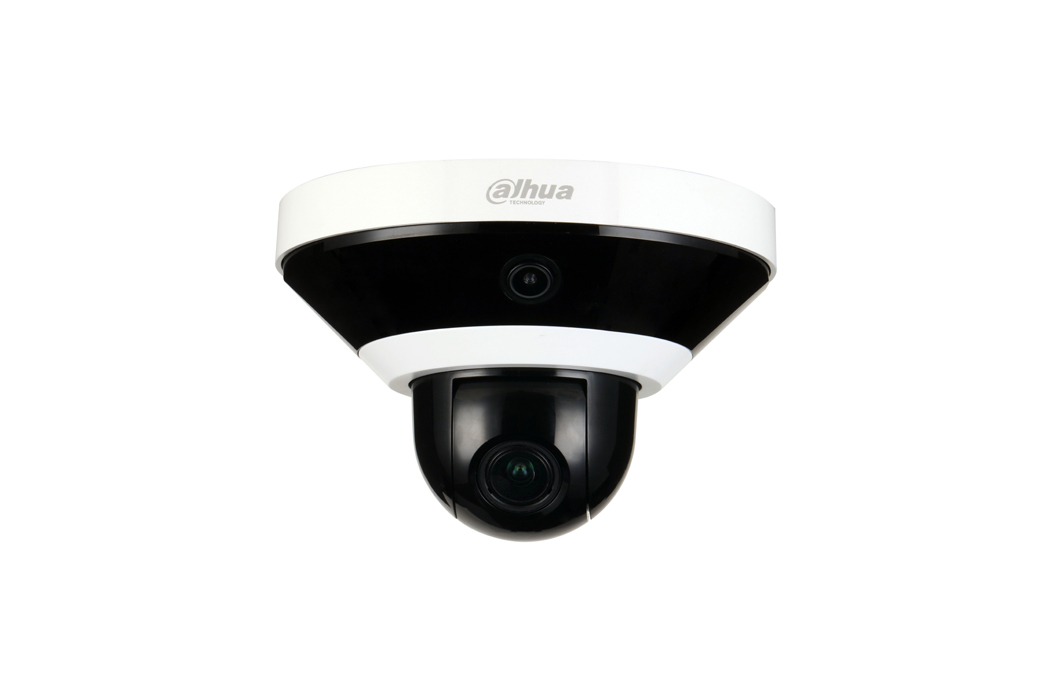

Dahua Technology Panoramic DH-PSDW5231S-B120 Dome IP security camera
Dahua Technology

Panoramic DH-PSDW5231S-B120 Dome IP security camera

1920 x 1080 pixels Ceiling/wall

Model DH-PSDW5231S-B120Part no. PSDW5231S-B120

96 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight710 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
710 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-PSDW5231S-B120
Part number
PSDW5231S-B120
Also known as
Dahua Technology Panoramic DH-PSDW5231S-B120 Dome IP security camera 1920 x 1080 pixels Ceiling/wall

Specifications

96 specifications in 19 groups

Performance

TypeIP security camera
Connectivity technologyWired
PTZ controlYes
PTZ modesPreset point
Day/night modeYes
Alarm input/outputYes
CertificationCE:EN 60950-1 UL:UL60950-1 FCC: FCC 15 B

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal, Plastic

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.02 lx
Lens viewing angle, horizontal105.9°
Lens viewing angle, vertical56°
Tilt angle range0 - 80°
Tilt speed40 °/sec
Pan range0 - 355°
Pan speed51 °/sec
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1 - 1/30000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Optical zoom5x
Digital zoom16x
Focal length range2.7 - 13.5 mm
FocusMotorized
Maximum aperture number1.8
Detect distance (tele)133 m
Detect distance (wide)44 m
Identify distance (tele)13 m
Identify distance (wide)4.5 m
Observe distance (tele)53 m
Observe distance (wide)18 m
Recognize distance (tele)26 m
Recognize distance (wide)9 m

Night vision

Night visionYes
Night vision distance15 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate25 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;D NS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1 x;Multicast;ICMP;IGMP;SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1024 MB
ROM capacity128 MB

Ports & interfaces

RS-485 ports1

Security

Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)11.8 W
Power consumption (Power over Ethernet (PoE))12.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height123.4 mm
Diameter17.2 cm
Weight710 g

Packaging data

Package weight1.06 kg

Packaging content

Number of cameras1
