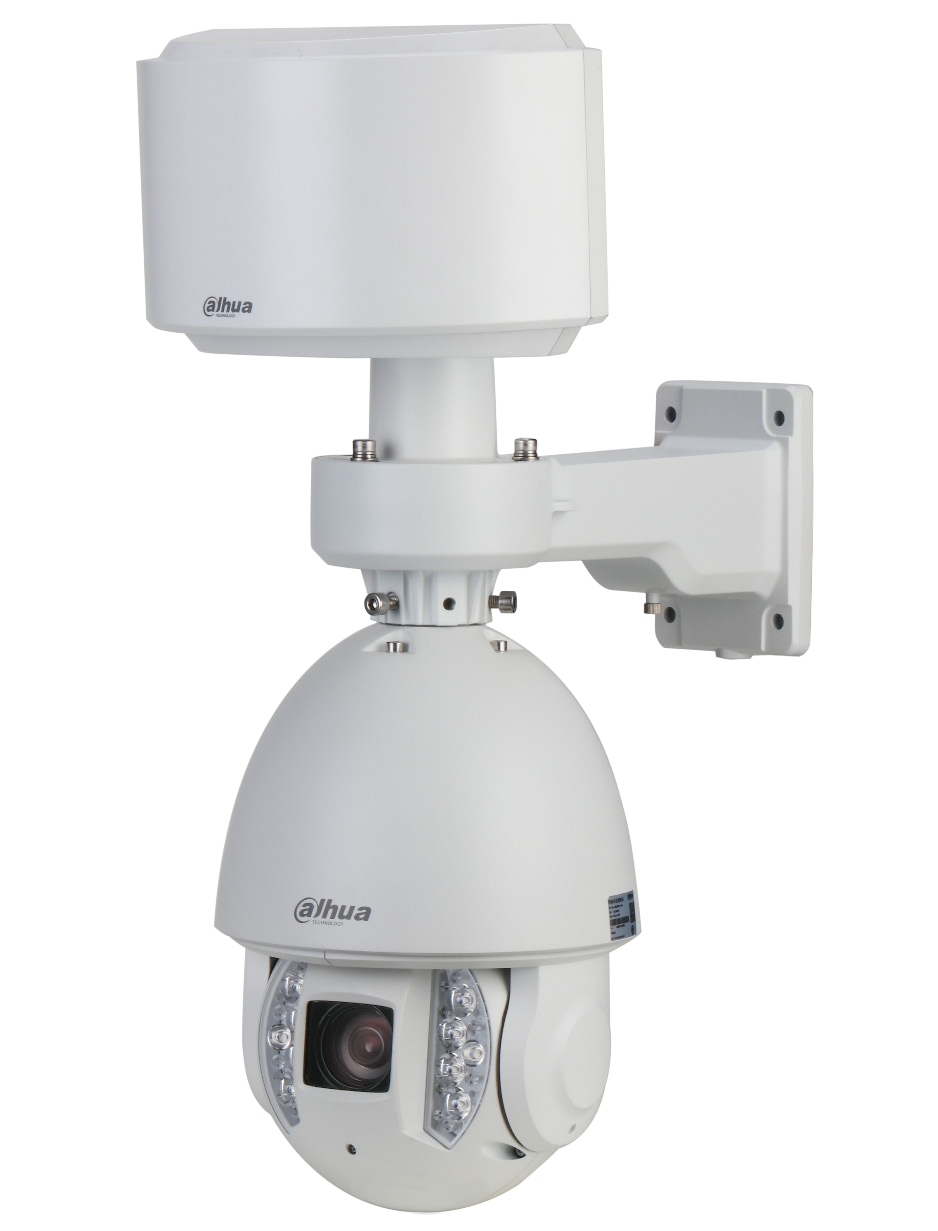

Dahua Technology DH-PFR4KS-E50 Dome IP security camera Outdoor
Dahua Technology

DH-PFR4KS-E50 Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling

Model DH-PFR4KS-E50Part no. PFR4KS-E50

88 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight12.5 kg
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
12.5 kg
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-PFR4KS-E50
Part number
PFR4KS-E50
Also known as
Dahua Technology DH-PFR4KS-E50 Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling

Specifications

88 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan, Preset point
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationFCC: EMC 15B FCC ID: RF 15C CE: EN55032/EN55024/EN301489

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Lens viewing angle, horizontal60.4°
Tilt angle range-20 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed200 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.9 mm (1 / 1.9")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom33x
Digital zoom16x
Focal length range6 - 198 mm
Maximum aperture number4.8
Minimum aperture number1.5
Closest focusing distance0.01 m

Night vision

Night visionYes
Night vision distance220 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Video streamingYes
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate256K - 8192Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Voice codecsG.168, G.711Mu, G.711a, G.722.1, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
BNC output ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Scene change
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typeDC
Power consumption (max)38 W
DC output voltage36

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width443.3 mm
Depth297 mm
Height665.3 mm
Weight12.5 kg

Packaging data

Package weight16 kg

Packaging content

Number of cameras1
