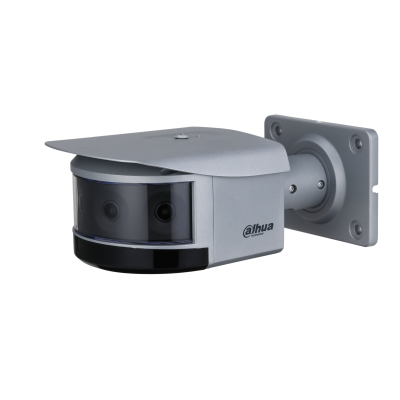

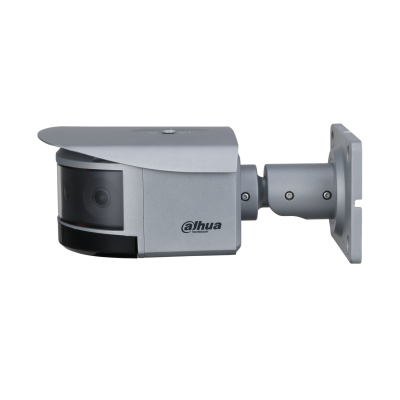

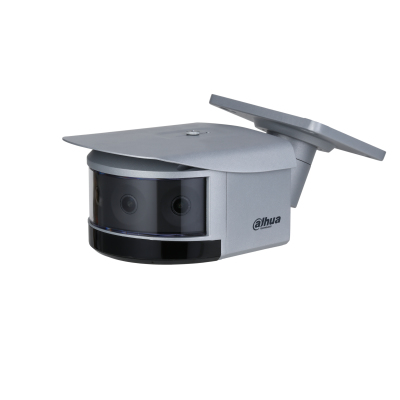

Dahua Technology WizMind DH-IPC-PFW83242-A180-S2 security camera Bullet IP security camera Outdoor
Dahua Technology

WizMind DH-IPC-PFW83242-A180-S2 security camera Bullet IP security camera Outdoor

8192 x 3840 pixels Ceiling/Wall/Pole

Model DH-IPC-PFW83242-A180-S2

92 specifications
  • Memory4096 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight3.16 kg
  • ColourGrey
  • Form factorBullet
See all specifications

Overview

Memory
4096 MB
Connectivity
Wired
Type
IP security camera
Weight
3.16 kg
Colour
Grey
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-PFW83242-A180-S2
Part number
DH-IPC-PFW83242-A180-S2
Also known as
Dahua Technology WizMind DH-IPC-PFW83242-A180-S2 security camera Bullet IP security camera Outdoor 8192 x 3840 pixels Ceiling/Wall/Pole

Specifications

92 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourGrey
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal180°
Lens viewing angle, vertical100°
Tilt angle range0 - 90°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors4
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Panoramic camera

Sensor type (panoramic camera)CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)56 dB
Digital Wide Dynamic Range (DWDR) (panoramic camera)Yes

Lens system

Detect distance84 m
Observe distance33.6 m
Recognize distance16.8 m
Identify distance8.4 m
Maximum aperture number1.6
Closest focusing distance1.8 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR/White
Number of illumination LEDs8

Video

Maximum resolution8192 x 3840 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 96kbps–32768 kbps; H.265: 38kbps–32768 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Voice codecsG.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity8192 MB
RAM capacity4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Alarm input channels2
Alarm output channels2
Video motion detectionYes

Management features

Web browserYes
Management softwareDSS

Power

Power source typeAC, DC, PoE
AC input voltage24 V
Power consumption (typical)10.6 W
Power consumption (max)25 W
Power consumption (Power over Ethernet (PoE))11.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width298.3 mm
Depth172.5 mm
Height120.5 mm
Weight3.16 kg

Packaging data

Package weight4.06 kg

Packaging content

Number of cameras1
