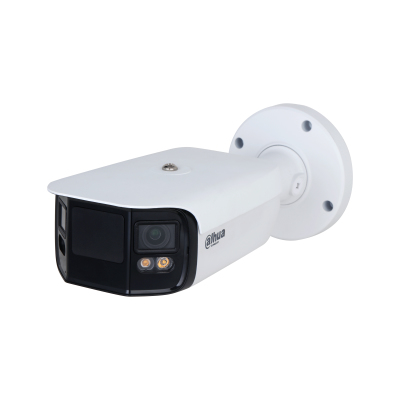

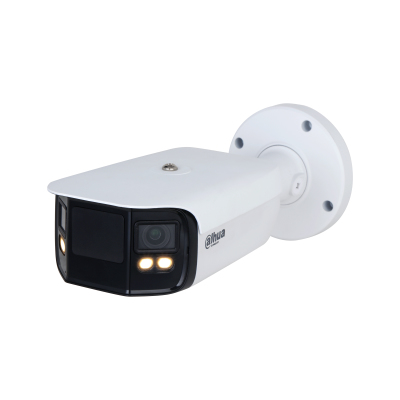

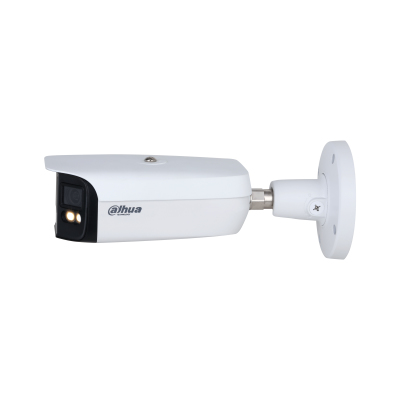

Dahua Technology WizMind DH-IPC-PFW5849-A180-E2-ASTE security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

WizMind DH-IPC-PFW5849-A180-E2-ASTE security camera Bullet IP security camera Indoor & outdoor

4096 x 1800 pixels Wall/Pole

Model DH-IPC-PFW5849-A180-E2-ASTE

95 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.42 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
1.42 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-PFW5849-A180-E2-ASTE
Part number
DH-IPC-PFW5849-A180-E2-ASTE
Also known as
Dahua Technology WizMind DH-IPC-PFW5849-A180-E2-ASTE security camera Bullet IP security camera Indoor & outdoor 4096 x 1800 pixels Wall/Pole

Specifications

95 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Built-in lightYes
Dynamic range140 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeWall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal180°
Lens viewing angle, vertical48°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors2
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses2
Detect distance70.3 m
Observe distance28.1 m
Recognize distance14.1 m
Identify distance7 m
Maximum aperture number1
Closest focusing distance3.6 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance40 m

Video

Maximum resolution4096 x 1800 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Video compression formatsH.264, H.264+, H.264H, H.265, H.265+
Supported graphics resolutions1920 x 832, 2880 x 1264, 3840 x 1080, 3840 x 1680, 4096 x 1800
Video recordingYes
Frame rate25 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rateH.264: 9 kbps–8192 kbps H.265: 9 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711, G.723, G.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes
Client interoperabilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Internal memory1000 MB
ROM capacity128 MB

Security

Alarm input channels1
Alarm output channels1
Privacy protectionYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)4.8 W
Power consumption (max)10.5 W
Power consumption (Power over Ethernet (PoE))5.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width128.2 mm
Depth301.2 mm
Height120.1 mm
Weight1.42 kg

Packaging data

Package weight1.57 kg

Packaging content

Number of cameras1
