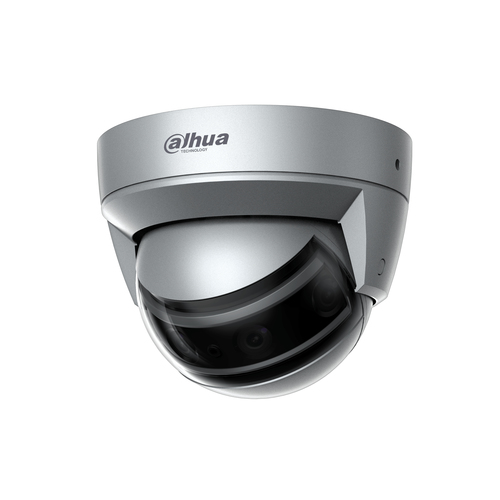

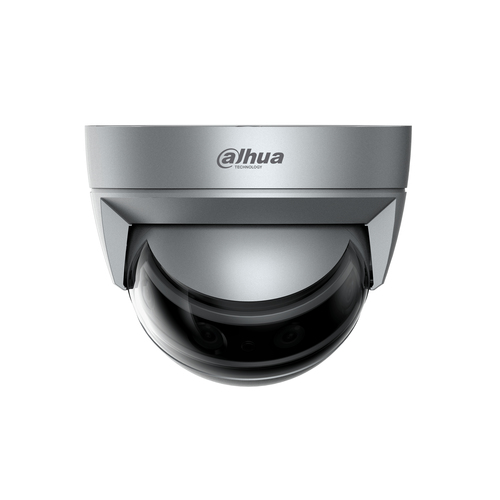

Dahua Technology WizMind DH-IPC-PDBW8840N-A180 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizMind DH-IPC-PDBW8840N-A180 security camera Dome IP security camera Indoor & outdoor

4096 x 1800 pixels Ceiling/Wall/Pole

Model DH-IPC-PDBW8840N-A180

95 specifications
  • Memory2 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight3.65 kg
  • ColourSilver
  • Form factorDome
See all specifications

Overview

Memory
2 MB
Connectivity
Wired
Type
IP security camera
Weight
3.65 kg
Colour
Silver
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-PDBW8840N-A180
Part number
DH-IPC-PDBW8840N-A180
Also known as
Dahua Technology WizMind DH-IPC-PDBW8840N-A180 security camera Dome IP security camera Indoor & outdoor 4096 x 1800 pixels Ceiling/Wall/Pole

Specifications

95 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourSilver
Housing materialMetal, Plastic
Protection featuresVandal proof
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.002 lx
Angle of rotation20°
Lens viewing angle, horizontal180°
Lens viewing angle, vertical90°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors4
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Digital zoom16x
Detect distance38.6 m
Observe distance15.8 m
Recognize distance7.7 m
Fixed focusYes
Identify distance3.9 m
Maximum aperture number1.6
Closest focusing distance0.6 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution4096 x 1800 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions1920 x 832, 2880 x 1264, 3840 x 1680, 4096 x 1800
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265: 9 Kbps to 17664 Kbps H.264: 24 Kbps to 17664 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Voice codecsG.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsHTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory2 MB
ROM capacity4 MB

Ports & interfaces

RS-485 ports1
BNC output ports1

Security

Alarm input channels2
Alarm output channels2
HTTPS encryptionYes
Human and vehicle targets classificationYes
Network access storage (NAS)Yes
Video motion detectionYes

Power

Power source typeAC, DC, PoE
AC input voltage24 V
Power consumption (typical)14.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height169.5 mm
Diameter21.2 cm
Weight3.65 kg

Packaging data

Package weight4.37 kg

Packaging content

Number of cameras1
Mounting kitYes
