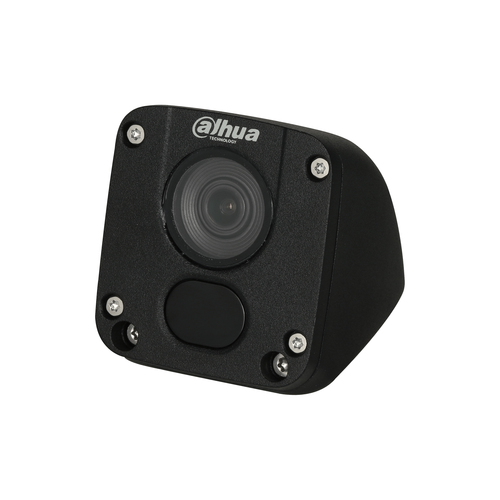

Mobile Camera DH-IPC-MW1230DN-HM12 security camera IP security camera Indoor
1920 x 1080 pixels
Model DH-IPC-MW1230DN-HM12
41 specifications
- Memory128 MB
- ConnectivityWireless
- TypeIP security camera
- ColourBlack
- Camera shutter typeElectronic
- Sensor typeCMOS
Overview
- Memory
- 128 MB
- Connectivity
- Wireless
- Type
- IP security camera
- Colour
- Black
- Camera shutter type
- Electronic
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-IPC-MW1230DN-HM12
- Part number
- DH-IPC-MW1230DN-HM12
- Also known as
- Dahua Technology Mobile Camera DH-IPC-MW1230DN-HM12 security camera IP security camera Indoor 1920 x 1080 pixels
Specifications
41 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE (EN 60950:2000), FCC: FCC Part 15 Subpart B, E-mark(ECE-Regulation No.10), EN50155(Optional) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP67, IP69K |
| IK code | IK10 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 3 |
| Detect distance | 80 m |
| Observe distance | 32 m |
| Recognize distance | 16 m |
| Fixed focus | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Infra-red LEDs life | 1 h |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Bit rate | H.264, H.265 |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 50 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Number of users | 20 user(s) |
Storage
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| ROM capacity | 16 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
