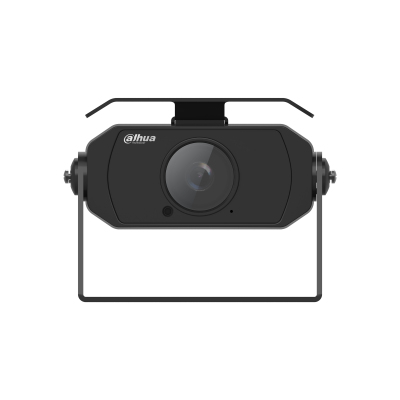

Dahua Technology DH-IPC-HMW3230N-M-DAE-0600B security camera IP security camera Outdoor
Dahua Technology

DH-IPC-HMW3230N-M-DAE-0600B security camera IP security camera Outdoor

1920 x 1080 pixels

Model DH-IPC-HMW3230N-M-DAE-0600B

60 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight395 g
  • ColourBlack
  • Minimum illumination0 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
395 g
Colour
Black
Minimum illumination
0 lx
Sensor type
CMOS
Brand
Dahua Technology
Model
DH-IPC-HMW3230N-M-DAE-0600B
Part number
DH-IPC-HMW3230N-M-DAE-0600B
Also known as
Dahua Technology DH-IPC-HMW3230N-M-DAE-0600B security camera IP security camera Outdoor 1920 x 1080 pixels

Specifications

60 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Product colourBlack
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal55°
Lens viewing angle, vertical31°
Lens viewing angle, diagonal62°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Minimum aperture number2
Fixed focal length6 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported video modes1080p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Power

Power source typeDC, PoE
Power consumption (typical)1.3 W
Power consumption (max)2.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width107 mm
Depth82 mm
Height68 mm
Weight395 g

Packaging data

Package weight550 g

Packaging content

Number of cameras1
