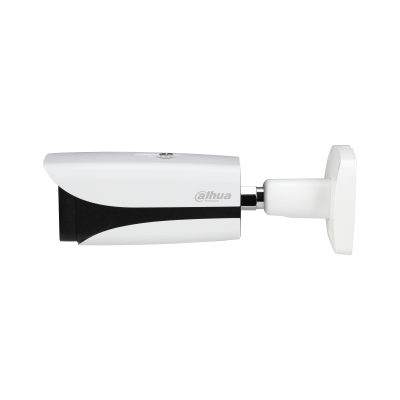

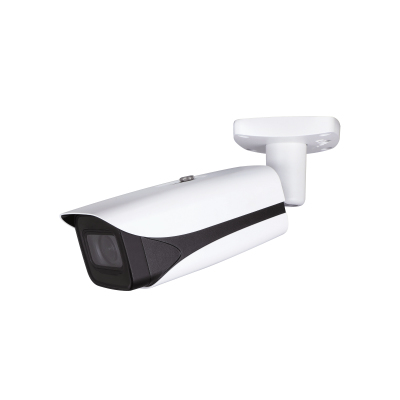

Dahua Technology WizMind DH-IPC-HFW5842E-ZE-S2 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

WizMind DH-IPC-HFW5842E-ZE-S2 security camera Bullet IP security camera Indoor & outdoor

3840 x 2160 pixels Ceiling/wall

Model DH-IPC-HFW5842E-ZE-S2EAN 6923172524867

102 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.11 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
1.11 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW5842E-ZE-S2
Part number
DH-IPC-HFW5842E-ZE-S2
EAN / UPC
6923172524867
Also known as
Dahua Technology WizMind DH-IPC-HFW5842E-ZE-S2 security camera Bullet IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

102 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10
Fog proofYes

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal45 - 110.4°
Lens viewing angle, vertical25.2 - 57.8°
Lens viewing angle, diagonal51.8 - 133.8°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 12 mm
FocusMotorized
Maximum aperture number1.4
Closest focusing distance1 m
Detect distance (tele)196 m
Detect distance (wide)86 m
Identify distance (tele)19.6 m
Identify distance (wide)8.6 m
Observe distance (tele)78.4 m
Observe distance (wide)34.4 m
Recognize distance (tele)39.2 m
Recognize distance (wide)17.2 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3840 x 2160
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32 – 8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Voice codecsG.711Mu, G.711a, G.723, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Number of users20 user(s)
Live viewYes
Number of simultaneous live view channels3 channels

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1024 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
Alert notification typeSnapshot alert message
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Heat map, Intrusion, Missing object, Tripwire
MirrorYes
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (typical)6.4 W
Power consumption (max)7.1 W
Power consumption (Power over Ethernet (PoE))7.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width273.2 mm
Depth95 mm
Height95 mm
Weight1.11 kg

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Sustainability complianceYes

Packaging data

Package weight1.51 kg

Packaging content

Number of cameras1
