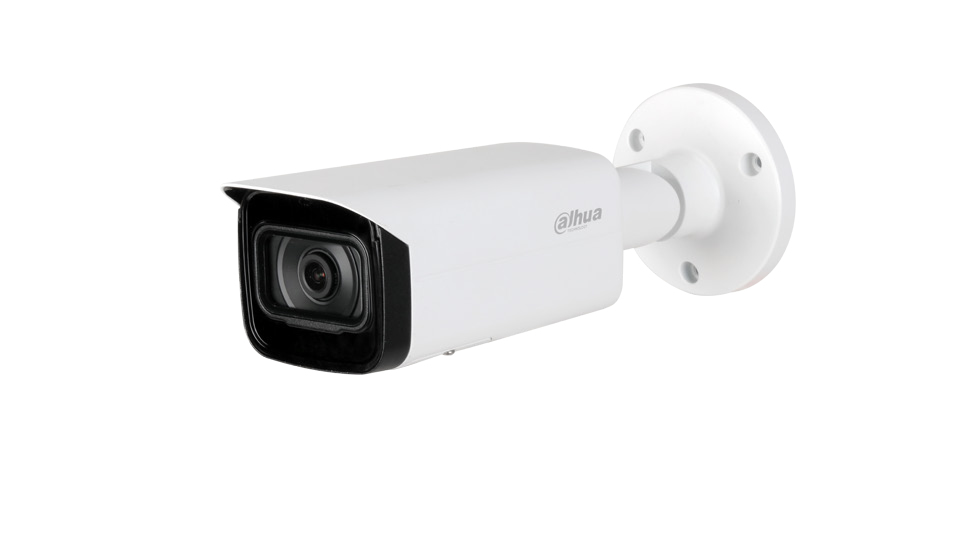

Dahua Technology Pro DH-IPC-HFW5541T-ASE Bullet IP security camera Outdoor
Dahua Technology

Pro DH-IPC-HFW5541T-ASE Bullet IP security camera Outdoor

2592 x 1944 pixels Ceiling/wall

Model DH-IPC-HFW5541T-ASEPart no. IPC-HFW5541T-ASEEAN 6923172578693

95 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight815 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
815 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW5541T-ASE
Part number
IPC-HFW5541T-ASE
EAN / UPC
6923172578693, 6923172584342
Also known as
Dahua Technology Pro DH-IPC-HFW5541T-ASE Bullet IP security camera Outdoor 2592 x 1944 pixels Ceiling/wall

Specifications

95 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE-LVD:EN60950-1 CE-EMC 2014/30/EU FCC:47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal84°
Lens viewing angle, vertical58°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance80 m
Observe distance32 m
Recognize distance16 m
Identify distance8 m
Maximum aperture number1.6
Closest focusing distance1.6 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance78 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1944, 2688 x 1520
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32- 8192Kbps, 19- 8192Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Voice codecsG.711Mu, G.711a, G.723, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP;NTP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, People counting, Scene change, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typeDC, PoE
Power consumption (max)7.1 W
Power consumption (Power over Ethernet (PoE))8.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width79 mm
Depth75.9 mm
Length244.1 mm
Weight815 g

Packaging data

Package weight1.08 kg

Packaging content

Number of cameras1
