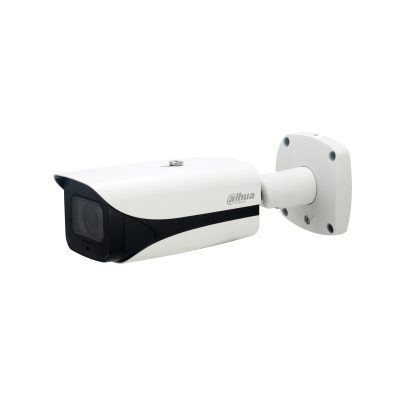

Dahua Technology WizMind DH-IPC-HFW5442EP-ZE security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

WizMind DH-IPC-HFW5442EP-ZE security camera Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Wall

Model DH-IPC-HFW5442EP-ZEEAN 8435280914310

95 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.11 kg
  • ColourBlack, White
  • Form factorBullet
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
1.11 kg
Colour
Black, White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW5442EP-ZE
Part number
DH-IPC-HFW5442EP-ZE
EAN / UPC
8435280914310
Also known as
Dahua Technology WizMind DH-IPC-HFW5442EP-ZE security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Wall

Specifications

95 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlNo
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range140 dB
CertificationCE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeWall
Product colourBlack, White
LED indicatorsYes
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlNo
Camera tilt controlNo
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal114 - 47°
Lens viewing angle, vertical62 - 26°
Lens viewing angle, diagonal136 - 56°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 s–1/100,000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 8 mm (1 / 8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 12 mm
Maximum aperture number1.8
Detect distance (tele)130.7 m
Detect distance (wide)57.5 m
Identify distance (tele)13.1 m
Identify distance (wide)18.7 m
Observe distance (tele)52.3 m
Observe distance (wide)23 m
Recognize distance (tele)26.1 m
Recognize distance (wide)11.5 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711, G.711 A-law, G.723, G.726, PCM

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Heat map, Intrusion, Missing object, Tripwire
MirrorYes
Security algorithmsSNMP
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)9.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width273.2 mm
Depth95 mm
Height95 mm
Weight1.11 kg

Packaging data

Package weight1.51 kg

Packaging content

Number of cameras1
