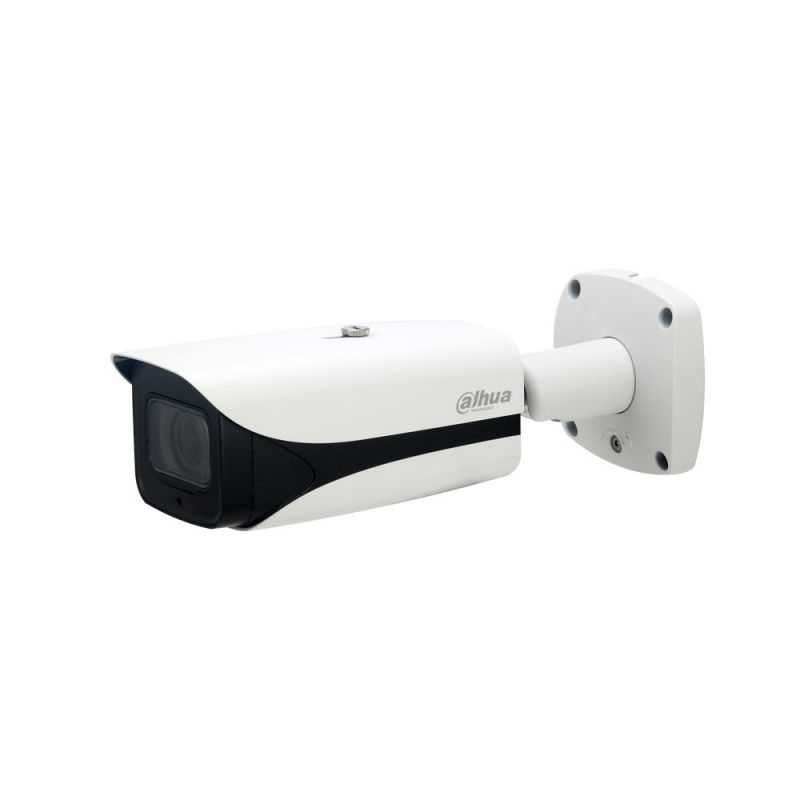

Dahua Technology Pro DH-IPC-HFW5241E-ZE Bullet IP security camera Outdoor
Dahua Technology

Pro DH-IPC-HFW5241E-ZE Bullet IP security camera Outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model DH-IPC-HFW5241E-ZEPart no. IPC-HFW5241EP-ZE-27135EAN 6939554965890

111 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.11 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
1.11 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW5241E-ZE
Part number
IPC-HFW5241EP-ZE-27135
EAN / UPC
6939554965890
Also known as
Dahua Technology Pro DH-IPC-HFW5241E-ZE Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

111 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
CertificationCE-LVD:EN60950-1 CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
Protection featuresVandal proof, Water resistant
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0028 lx
Angle of rotation360°
Lens viewing angle, horizontal109°
Lens viewing angle, vertical57°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter speed1/3~1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Optical zoom5x
Focal length range2.7 - 13.5 mm
FocusMotorized
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)146 m
Detect distance (wide)44 m
Identify distance (tele)15 m
Identify distance (wide)4 m
Observe distance (tele)58 m
Observe distance (wide)18 m
Recognize distance (tele)29 m
Recognize distance (wide)9 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate25 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32~8192Kbps; H.265: 19~7424Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsAAC, G.711Mu, G.711a, G.723, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.3af
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Crossing line, Face detection, Intrusion, Missing object, People counting, Scene change, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Behavior analysisLine crossing detection, Region entrance detection

Power

Power source typeDC, PoE
Power consumption (max)9.4 W
Power consumption (Power over Ethernet (PoE))10.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width273.2 mm
Depth95 mm
Height95 mm
Weight1.11 kg

Packaging data

Package weight1.51 kg

Packaging content

Number of cameras1
