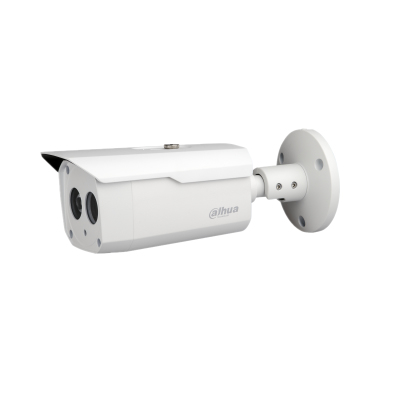

Eco-savvy 3.0 DH-IPC-HFW4231B-AS Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Wall
Model DH-IPC-HFW4231B-ASPart no. IPC-HFW4231B-AS
90 specifications
- Memory256 MB
- ConnectivityWired
- TypeIP security camera
- Weight610 g
- ColourWhite
- Form factorBullet
Overview
- Memory
- 256 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 610 g
- Colour
- White
- Form factor
- Bullet
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-IPC-HFW4231B-AS
- Part number
- IPC-HFW4231B-AS
- Also known as
- Dahua Technology Eco-savvy 3.0 DH-IPC-HFW4231B-AS Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall
Specifications
90 specifications in 20 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Alarm input/output | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 57° |
| Lens viewing angle, vertical | 48° |
| Tilt angle range | 0 - 87° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual, Natural, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Effective sensor resolution | 2074 pixels |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | No |
| Digital zoom | 16x |
| Detect distance | 55 m |
| Observe distance | 22 m |
| Recognize distance | 11 m |
| Identify distance | 6 m |
| Maximum aperture number | 2 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2.1 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image stabilizer | Yes |
| 3D NR (Noise Reduction) | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 24~9472Kbps, H.265: 14~5632Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 A-law, G.711 μ-law, G.726 |
| Signal-to-Noise Ratio (SNR) | 50 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Supported network protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Client interoperability | ONVIF, PSIA, CGI |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 128 GB |
| Internal memory | 256 MB |
| ROM capacity | 32 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Microphone in | Yes |
| Headphone outputs | 1 |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object, Tripwire |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
| Management software | Smart PSS, DSS, Easy4ip |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 6.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.4 mm |
| Depth | 241.8 mm |
| Height | 90.3 mm |
| Weight | 610 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Other features
| Specification | Value |
|---|---|
| IR control | Auto, Manual |
