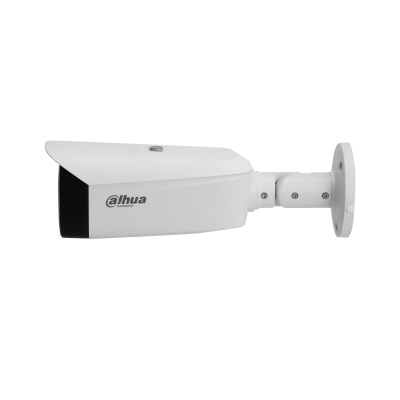

Dahua Technology WizSense DH-IPC-HFW3449T1-AS-PV security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-IPC-HFW3449T1-AS-PV security camera Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/Wall/Pole

Model DH-IPC-HFW3449T1-AS-PVEAN 6923172580238

96 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
1 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW3449T1-AS-PV
Part number
DH-IPC-HFW3449T1-AS-PV
EAN / UPC
6923172580238
Also known as
Dahua Technology WizSense DH-IPC-HFW3449T1-AS-PV security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/Wall/Pole

Specifications

96 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal101°
Lens viewing angle, vertical53°
Lens viewing angle, diagonal120°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Detect distance66 m
Observe distance26.4 m
Recognize distance13.2 m
Focal length range2.8 mm
Identify distance6.6 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.265, H.265+
Video compression formatsH.264, H.264B, H.264H, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Built-in speaker(s)Yes
Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.723, G.726, PCM
Bit rate range12 - 8192 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Number of users20 user(s)
Client interoperabilityONVIF (Profile S;Profile G;Profile T); CGI

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Web-based managementYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)4.4 W
Power consumption (max)8.2 W
Power consumption (Power over Ethernet (PoE))4.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width94.4 mm
Depth288.4 mm
Height84.7 mm
Weight1 kg

Packaging data

Package weight1.23 kg

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE8/9/11 Chrome Firefox

Technical details

Number of video streams3
