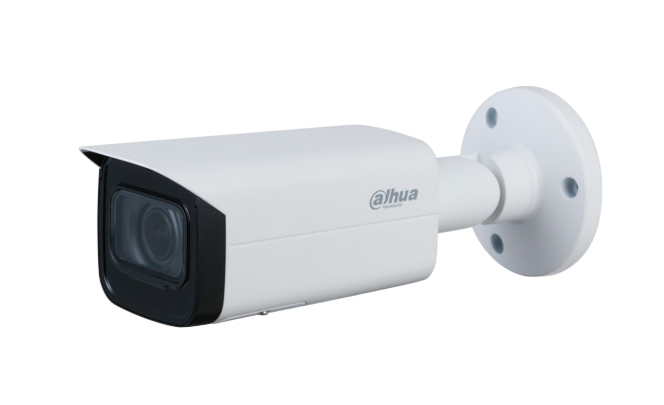

Dahua Technology Lite AI DH-IPC-HFW3441TN-ZAS security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Lite AI DH-IPC-HFW3441TN-ZAS security camera Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Wall/Pole

Model DH-IPC-HFW3441TN-ZAS

93 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight820 g
  • ColourBlack, White
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
820 g
Colour
Black, White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW3441TN-ZAS
Part number
DH-IPC-HFW3441TN-ZAS
Also known as
Dahua Technology Lite AI DH-IPC-HFW3441TN-ZAS security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Wall/Pole

Specifications

93 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeWall/Pole
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.005 lx
Angle of rotation360°
Lens viewing angle, horizontal104 - 27°
Lens viewing angle, vertical55 - 15°
Lens viewing angle, diagonal124 - 31°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Focal length range2.7 - 13.5 mm
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)222 m
Detect distance (wide)64 m
Identify distance (tele)22.2 m
Identify distance (wide)6.4 m
Observe distance (tele)88.8 m
Observe distance (wide)25.6 m
Recognize distance (tele)44.4 m
Recognize distance (wide)12.8 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Frame rate30 fps
Analog signal format systemNTSC
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps–8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711 A-law, G.711 μ-law, G.726

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP; Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Number of users20 user(s)

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Alarm input channels1
Alarm output channels1
MirrorYes
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)9.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Depth79 mm
Height75.9 mm
Length244.1 mm
Weight820 g

Packaging data

Package weight1.09 kg

Packaging content

Number of cameras1
