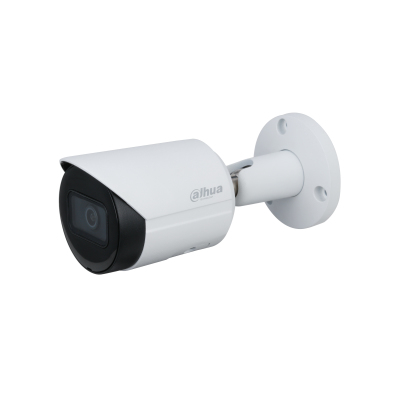

Dahua Technology Lite DH-IPC-HFW2431SP-S-S2 security camera Turret IP security camera Indoor & outdoor
Dahua Technology

Lite DH-IPC-HFW2431SP-S-S2 security camera Turret IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model DH-IPC-HFW2431SP-S-S2

108 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight480 g
  • ColourBlack, White
  • Form factorTurret
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
480 g
Colour
Black, White
Form factor
Turret
Brand
Dahua Technology
Model
DH-IPC-HFW2431SP-S-S2
Part number
DH-IPC-HFW2431SP-S-S2
Also known as
Dahua Technology Lite DH-IPC-HFW2431SP-S-S2 security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

108 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Remote viewingYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorTurret
Mounting typeCeiling
Product colourBlack, White
LED indicatorsYes
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.008 lx
Angle of rotation360°
Lens viewing angle, horizontal102°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal121°
Tilt angle range0 - 360°
Pan range0 - 90°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 –1/100,000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Detect distance80 m
Observe distance32 m
Recognize distance8 m
Lens diameter1.6 mm
Focal length range2.8 - 3.6 mm
Closest focusing distance1.6 m
Detect distance (tele)80 m
Detect distance (wide)56 m
Identify distance (tele)8 m
Identify distance (wide)5.6 m
Observe distance (tele)32 m
Observe distance (wide)22.4 m
Recognize distance (tele)16 m
Recognize distance (wide)11.2 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264B, H.265, M-JPEG
Video compression formatsH.264+, H.264H, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes480p, 720p, 1080p, 2880p
Video recordingYes
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 20480 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Portrait modeYes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Built-in speaker(s)No
Audio system2-way
Audio system full duplexYes
Audio input channels2.0 channels
Audio output channels2.0 channels
Audio formats supportedG.711, G.722
Audio codecsG.711a; G.711Mu; PCM; G.726; G.723
Built-in microphoneYes
Voice codecsG.711, G.711Mu, G.711u, G.722
Audio detectionYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-232 ports1

Security

Alarm input channels1
Alarm output channels1
Automatic Network Replenishment (ANR)Yes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height166.2 mm
Diameter7 cm
Weight480 g

Packaging data

Package weight570 g

Packaging content

Number of cameras1
