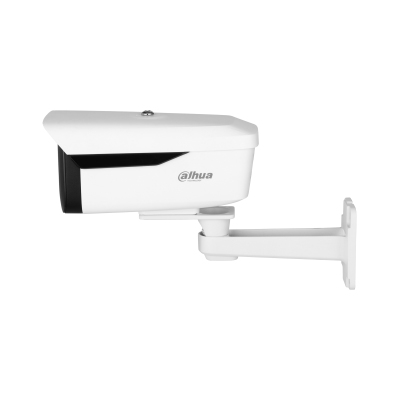

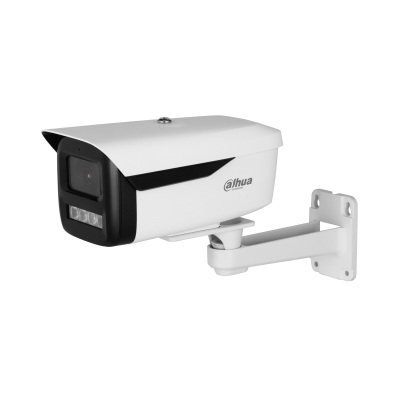

WizSense DH-IPC-HFW2249M-AS-LED-B security camera Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/Desk
Model DH-IPC-HFW2249M-AS-LED-B
69 specifications
- Memory128 MB
- ConnectivityWired
- TypeIP security camera
- Weight710 g
- ColourWhite
- Form factorBullet
Overview
- Memory
- 128 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 710 g
- Colour
- White
- Form factor
- Bullet
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-IPC-HFW2249M-AS-LED-B
- Part number
- DH-IPC-HFW2249M-AS-LED-B
- Also known as
- Dahua Technology WizSense DH-IPC-HFW2249M-AS-LED-B security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Desk
Specifications
69 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Built-in light | Yes |
| Dynamic range | 120 dB |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Desk |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.002 lx |
| Number of Privacy masking areas | 4 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264 |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 2.0 channels |
| Audio output channels | 2.0 channels |
| Built-in microphone | Yes |
| Voice codecs | G.711Mu, G.711a, G.726, PCM |
| Audio detection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Internal memory | 128 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Active tampering alarm | Yes |
| Mirror | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 2 W |
| Power consumption (max) | 7.9 W |
| Power consumption (Power over Ethernet (PoE)) | 9.7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 103.8 mm |
| Depth | 201 mm |
| Height | 97.8 mm |
| Weight | 710 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.27 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
