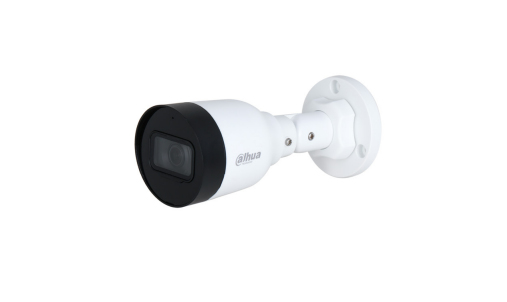

Entry DH-IPC-HFW1431S1-A-S4 security camera Bullet IP security camera Indoor & outdoor
2688 x 1520 pixels Wall
Model DH-IPC-HFW1431S1-A-S4
61 specifications
- ConnectivityWired
- TypeIP security camera
- Weight220 g
- ColourBlack, White
- Form factorBullet
- Minimum illumination0.03 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 220 g
- Colour
- Black, White
- Form factor
- Bullet
- Minimum illumination
- 0.03 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-IPC-HFW1431S1-A-S4
- Part number
- DH-IPC-HFW1431S1-A-S4
- Also known as
- Dahua Technology Entry DH-IPC-HFW1431S1-A-S4 security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Wall
Specifications
61 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.03 lx |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual, Natural, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Fixed focus | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Frame rate | 20 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Digest authentication | Yes |
| IP address filtering | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Management software | Smart PSS; DSS; DMSS |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 162.6 mm |
| Diameter | 7 cm |
| Weight | 220 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 340 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
