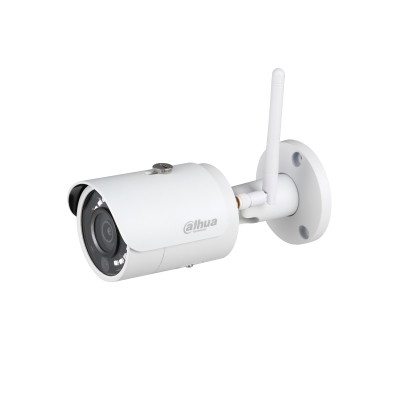

Dahua Technology DH-IPC-HFW1235SN-W-0280B-S2 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

DH-IPC-HFW1235SN-W-0280B-S2 security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-IPC-HFW1235SN-W-0280B-S2

87 specifications
  • Memory128 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight431 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
128 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
431 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW1235SN-W-0280B-S2
Part number
DH-IPC-HFW1235SN-W-0280B-S2
Also known as
Dahua Technology DH-IPC-HFW1235SN-W-0280B-S2 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

87 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Antenna typeExternal
CertificationCE-LVD, CE-EMC, FCC, FCC ID

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal106°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal125°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 – 1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Detect distance37.3 m
Observe distance14.9 m
Recognize distance7.5 m
Focal length range2.8 mm
Identify distance3.7 m
Maximum aperture number2
Closest focusing distance0.5 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs18

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.264B, H.265, M-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Thermal frame rate (NTSC)60 Hz
Analog signal format systemNTSC
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 24 kbps–8192 kbps H.265: 9 kbps–5632 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)49.05 dB

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareDMSS

Power

Power source typeDC
Power consumption (max)7.18 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 50 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width70 mm
Depth164.9 mm
Height125.2 mm
Weight431 g

Packaging data

Package weight708 g

Packaging content

Number of cameras1
