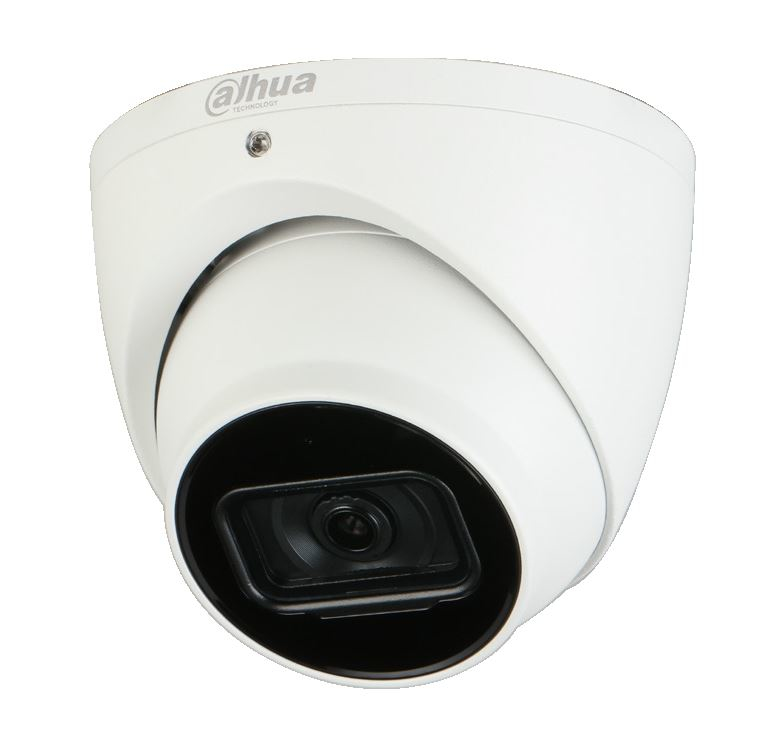

Dahua Technology WizSense DH-IPC-HDW3841EMP-AS Dome IP security camera Indoor
Dahua Technology

WizSense DH-IPC-HDW3841EMP-AS Dome IP security camera Indoor

3840 x 2160 pixels Ceiling

Model DH-IPC-HDW3841EMP-ASPart no. DH-IPC-HDW3841EMP-AS-0280BEAN 6939554994272

91 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight530 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
530 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDW3841EMP-AS
Part number
DH-IPC-HDW3841EMP-AS-0280B
EAN / UPC
6939554994272
Also known as
Dahua Technology WizSense DH-IPC-HDW3841EMP-AS Dome IP security camera Indoor 3840 x 2160 pixels Ceiling

Specifications

91 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal108°
Lens viewing angle, vertical58°
Lens viewing angle, diagonal127°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.8 mm
Maximum aperture number1.4
Closest focusing distance1.4 m
Detect distance (wide)85.5 m
Identify distance (wide)8.6 m
Observe distance (wide)34.2 m
Recognize distance (wide)17.1 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video formats supportedH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1512, 3072 x 1728, 3072 x 2048, 3840 x 2160
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedG.711 A-law, G.726
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
Client interoperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)2.6 W
Power consumption (max)6.9 W
Power consumption (Power over Ethernet (PoE))7.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height93.6 mm
Diameter10.6 cm
Weight530 g

Packaging data

Package weight800 g

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE8, IE9, IE11 Chrome Firefox
