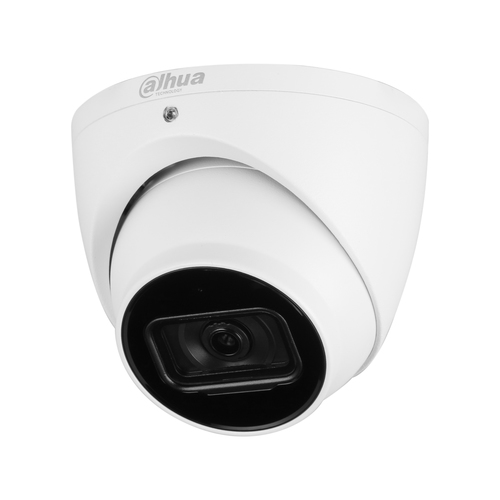

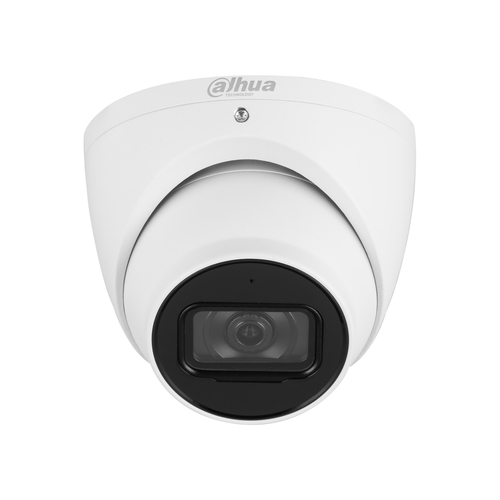

Dahua Technology WizSense DH-IPC-HDW3666EMP-S-AUS security camera Dome IP security camera Indoor
Dahua Technology

WizSense DH-IPC-HDW3666EMP-S-AUS security camera Dome IP security camera Indoor

3072 x 2048 pixels Ceiling/wall

Model DH-IPC-HDW3666EMP-S-AUS

94 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDW3666EMP-S-AUS
Part number
DH-IPC-HDW3666EMP-S-AUS
Also known as
Dahua Technology WizSense DH-IPC-HDW3666EMP-S-AUS security camera Dome IP security camera Indoor 3072 x 2048 pixels Ceiling/wall

Specifications

94 specifications in 22 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresDust resistant, Waterproof
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Viewing angle, horizontal (2.8mm lens)97°
Viewing angle, vertical (2.8mm lens)71°
Viewing angle, diagonal (2.8mm lens)129°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera)56 dB

Lens system

Focal length range2.8 - 3.6 mm
Maximum aperture number1.4
Closest focusing distance1.1 m
Detect distance (2.8mm lens)63.6 m
Observe distance (2.8mm lens)25.4 m
Recognize distance (2.8mm lens)12.7 m
Identify distance (2.8mm lens)6.4 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3072 x 2048 pixels
Total megapixels6 MP
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 2048
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rate3 - 8192 kpbs
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1024 MB
ROM capacity128 MB

Security

Digital watermarkYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresAbnormal sound detection, Human detection, Intrusion, Scene change, Tripwire, Vehicle detection
MirrorYes
Video motion detectionYes

Management features

Firmware upgradeableYes

Power

Power source typeAC, DC, PoE
Power consumption (typical)4.3 W
Power consumption (max)7.6 W
Power consumption (Power over Ethernet (PoE))4.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height93.6 mm
Diameter10.6 cm
Weight500 g

Sustainability

Compliance certificatesCE, Low Voltage Directive (LVD)
Sustainability complianceYes

Packaging data

Package weight770 g

Packaging content

Number of cameras1

Other features

Browser supportedIE11, Chrome, Firefox

Technical details

IrisYes
Lens mount interfaceM12
Number of video streams3
