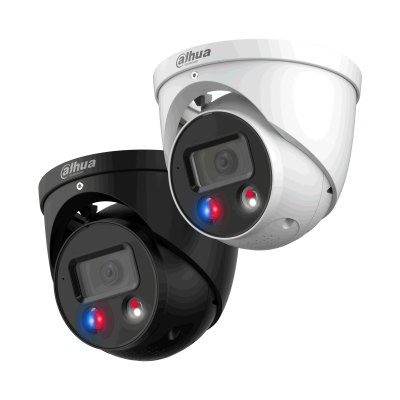

Dahua Technology WizSense DH-IPC-HDW3449H-AS-PV-S3 security camera Spherical IP security camera Outdoor
Dahua Technology

WizSense DH-IPC-HDW3449H-AS-PV-S3 security camera Spherical IP security camera Outdoor

2688 x 1520 pixels Ceiling

Model DH-IPC-HDW3449H-AS-PV-S3

93 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight745 g
  • ColourBlack, White
  • Form factorSpherical
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
745 g
Colour
Black, White
Form factor
Spherical
Brand
Dahua Technology
Model
DH-IPC-HDW3449H-AS-PV-S3
Part number
DH-IPC-HDW3449H-AS-PV-S3
Also known as
Dahua Technology WizSense DH-IPC-HDW3449H-AS-PV-S3 security camera Spherical IP security camera Outdoor 2688 x 1520 pixels Ceiling

Specifications

93 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range56 dB
CertificationCE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorSpherical
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Angle of rotation360°
Lens viewing angle, horizontal101°
Lens viewing angle, vertical53°
Lens viewing angle, diagonal120°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance66 m
Observe distance26.4 m
Recognize distance13.2 m
Focal length range2.8 mm
Maximum aperture number3.6
Closest focusing distance1.5 m
Identify distance (wide)6.6 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1512
Video streamingYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 20480 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711, G.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)1.75 W
Power consumption (max)6.4 W
Power consumption (Power over Ethernet (PoE))8.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height110.9 mm
Diameter12.2 cm
Weight745 g

Packaging data

Package weight915 g

Packaging content

Number of cameras1
