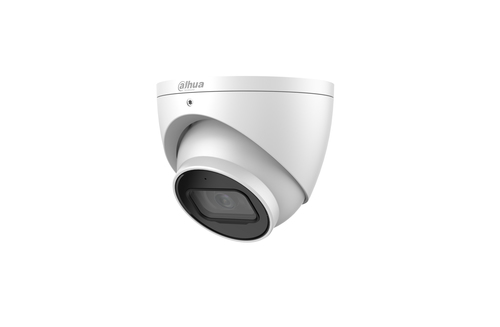

Dahua Technology WizSense DH-IPC-HDW3441EMP-AS-0280B security camera Dome IP security camera Indoor
Dahua Technology

WizSense DH-IPC-HDW3441EMP-AS-0280B security camera Dome IP security camera Indoor

2688 x 1520 pixels Ceiling

Model DH-IPC-HDW3441EMP-AS-0280BEAN 6923172551269

89 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight480 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
480 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDW3441EMP-AS-0280B
Part number
DH-IPC-HDW3441EMP-AS-0280B
EAN / UPC
6923172551269
Also known as
Dahua Technology WizSense DH-IPC-HDW3441EMP-AS-0280B security camera Dome IP security camera Indoor 2688 x 1520 pixels Ceiling

Specifications

89 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal103°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal122°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Detect distance56 m
Observe distance22.4 m
Recognize distance11.2 m
Identify distance5.6 m
Maximum aperture number1.6
Closest focusing distance0.9 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.264B, H.265, H.265+
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 2688 x 1512
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedG.711 A-law, G.726
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (max)7.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height99.1 mm
Diameter12.2 cm
Weight480 g

Packaging data

Package weight660 g

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE8, IE9, IE11 Chrome Firefox

Technical details

Number of video streams3
