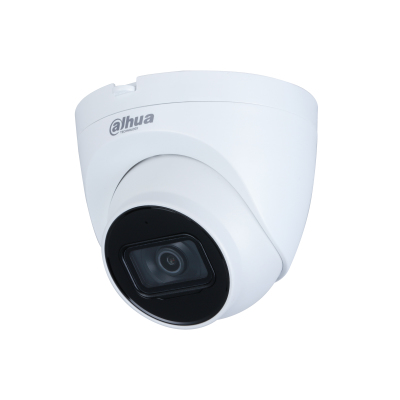

Dahua Technology Lite DH-IPC-HDW2431TP-AS-S2 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Lite DH-IPC-HDW2431TP-AS-S2 security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model DH-IPC-HDW2431TP-AS-S2

102 specifications
  • Storage256 GB
  • ConnectivityWired
  • TypeIP security camera
  • Weight390 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Storage
256 GB
Connectivity
Wired
Type
IP security camera
Weight
390 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDW2431TP-AS-S2
Part number
DH-IPC-HDW2431TP-AS-S2
Also known as
Dahua Technology Lite DH-IPC-HDW2431TP-AS-S2 security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

102 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Maximum operating distance30 m
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Remote viewingYes
Built-in lightYes
Dynamic range56 dB

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
LED indicatorsYes
Housing materialMetal
Protection featuresWater resistant, Waterproof
International Protection (IP) codeIP67
WeatherproofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.008 lx
Field of view (FOV) angle360°
Angle of rotation360°
Lens viewing angle, horizontal102°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal121°
Tilt angle range0 - 78°
Pan range0 - 360°
Auto flipYes
Camera pixel size2.8 µm
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 –1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors2
Optical sensor size25.4 / 3 mm (1 / 3")
Sensor type (thermal module)Noise equivalent temperature difference (NETD)
Progressive scanYes

Lens system

Number of lenses2
Zoom capabilityNo
Detect distance56 m
Observe distance22.4 m
Recognize distance11.2 m
Lens diameter2.8 mm
Lens diameter (wide)2.8 mm
Lens diameter (tele)3.6 mm
Focal length range2.8 - 3.6 mm
Auto focusYes
FocusMotorized/Manual
Identify distance5.6 m
Maximum aperture number1.6
Minimum aperture number1.6

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264B, H.265, M-JPEG
Video compression formatsH.264+, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes480p, 1080p, 1280p, 2880p
Video recordingYes
Frame rate30 fps
Video intelligence analyticYes
Smart IRYes

Audio

Built-in speaker(s)No
Audio input channels2.0 channels
Audio codecsG.711A; G.711Mu; G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Independently connects to the internetYes
Live viewYes
Streaming methodMulticast

Storage

Built-in HDDYes
SSD capacity256 GB
Card reader integratedYes
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes

Security

Siren noise level120 dB
Password protectionYes
Automatic Network Replenishment (ANR)Yes
IP address filteringYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Firmware upgradeableYes
Remotely operatedYes
Smartphone/tablet remote supportYes
WPS push buttonYes

Power

Power source typeDC
AC input voltage12 V

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width100.9 mm
Diameter11 cm
Weight390 g

Technical details

Video resolutions352 x 288,640 x 480,704 x 480,704 x 576,1280 x 720,1280 x 960,1920 x 1080,2304 x 1296,2560 x 1440,2688 x 1520
