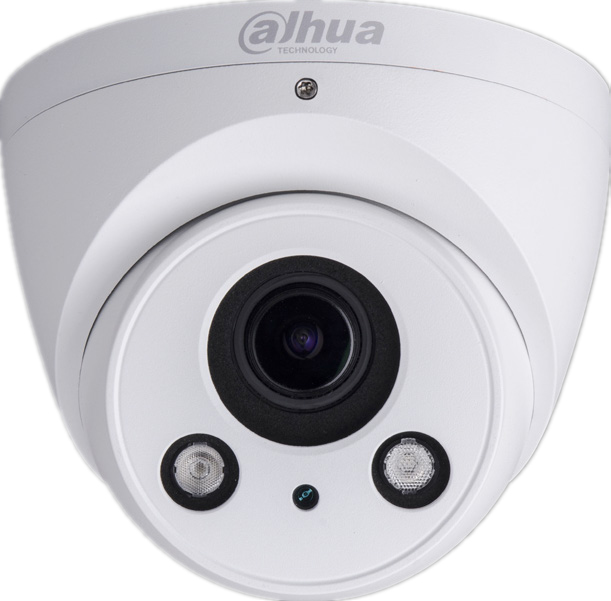

Dahua Technology Lite DH-IPC-HDW2431RP-ZS Dome IP security camera Indoor & outdoor Ceiling

Dahua Technology Lite DH-IPC-HDW2431RP-ZS Dome IP security camera Indoor & outdoor Ceiling

Model DH-IPC-HDW2431RP-ZSPart no. 1.0.01.04.19178EAN 6939554936883

103 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight600 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
600 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDW2431RP-ZS
Part number
1.0.01.04.19178
EAN / UPC
6939554936883
Also known as
Dahua Technology Lite DH-IPC-HDW2431RP-ZS Dome IP security camera Indoor & outdoor Ceiling

Specifications

103 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal104°
Lens viewing angle, vertical55°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3~1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Zoom capabilityYes
Digital zoom16x
Focal length range2.7 - 13.5 mm
FocusMotorized
Closest focusing distance0.2 m
Detect distance (tele)222 m
Detect distance (wide)64 m
Focus adjustment1.4
Identify distance (tele)22 m
Identify distance (wide)6 m
Observe distance (tele)89 m
Observe distance (wide)26 m
Recognize distance (tele)44 m
Recognize distance (wide)13 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported video modes720p, 1080p
Frame rate30 fps
Analog signal format systemPAL
Video streamingYes
Image stabilizerNo
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Bit rateH.265: 12K ~ 6400Kbps, H.264: 32K ~ 10240Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP ;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast
Client interoperabilityONVIF, PSIA, CGI

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory512 MB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports0
InterfaceRJ-45

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Management softwareSmart PSS, DSS, Easy4ip

Power

Power source typePoE
Power consumption (typical)11.3 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportediOS

Weight & dimensions

Height102 mm
Diameter12.2 cm
Weight600 g

Packaging data

Package weight710 g

Packaging content

Number of cameras1

Other features

Browser supportedIE, Chrome, Firefox, Safari
IR controlAuto, Manual

Technical details

Video resolutions352 x 288,640 x 480,704 x 480,704 x 576,1280 x 1024,1280 x 720,1280 x 960,1920 x 1080,2304 x 1296,2560 x 1440,2688 x 1520
Number of video streams2
