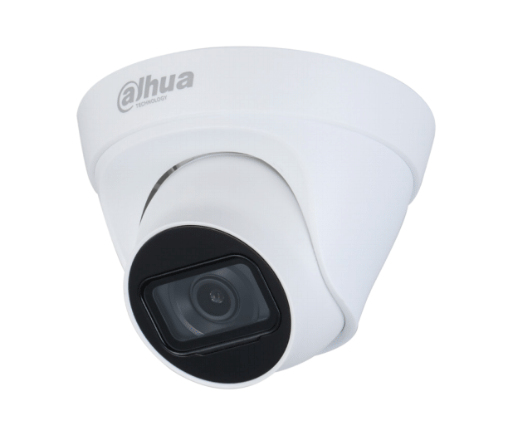

Dahua Technology Entry DH-IPC-HDW1230T1-S4 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Entry DH-IPC-HDW1230T1-S4 security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DH-IPC-HDW1230T1-S4EAN 6923172529336

82 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight240 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
IP security camera
Weight
240 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDW1230T1-S4
Part number
DH-IPC-HDW1230T1-S4
EAN / UPC
6923172529336, 6939554980404
Also known as
Dahua Technology Entry DH-IPC-HDW1230T1-S4 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

82 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.01 lx
Angle of rotation360°
Lens viewing angle, horizontal105°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal125°
Tilt angle range0 - 78°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3–1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance37.3 m
Observe distance14.9 m
Recognize distance7.5 m
Fixed focusYes
Identify distance3.7 m
Maximum aperture number2
Closest focusing distance0.5 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast

Storage

Built-in HDDNo
Internal memory64 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Motion sensorYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)4.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height85.5 mm
Diameter10.9 cm
Weight240 g

Packaging data

Package weight370 g

Packaging content

Number of cameras1
