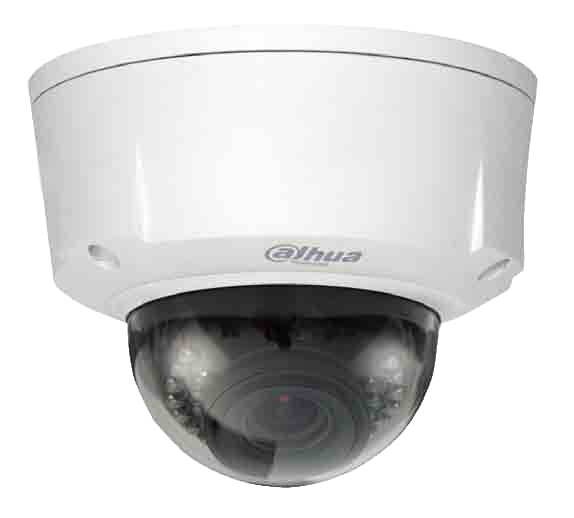

Dahua Technology Pro DH-IPC-HDBW8281P-Z Dome IP security camera Indoor & outdoor Ceiling

Model DH-IPC-HDBW8281P-ZPart no. 1.0.01.04.12005EAN 6939554901775

69 specifications

ConnectivityWired
TypeIP security camera
Weight1.25 kg
ColourWhite
Form factorDome
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 1.25 kg
Colour: White
Form factor: Dome
Minimum illumination: 0 lx

Brand: Dahua Technology
Category: Security Camera
Model: DH-IPC-HDBW8281P-Z
Part number: 1.0.01.04.12005
EAN / UPC: 6939554901775
Also known as: Dahua Technology Pro DH-IPC-HDBW8281P-Z Dome IP security camera Indoor & outdoor Ceiling

Specifications

69 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Alarm input/output	Yes

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White
International Protection (IP) code	IP66
IK code	IK10

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	105°
White balance	Auto
Camera shutter type	Electronic
Camera shutter speed	1/3(4)~1/10000 s
Adjustment shutter speed	Auto/Manual

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 1.9 mm (1 / 1.9")
Progressive scan	Yes
Number of effective pixels (H x V)	1920 x 1080 pixels

Lens system

Specification	Value
Focal length range	4 - 8 mm
Auto focus	Yes
Focus adjustment	1.65

Night vision

Specification	Value
Night vision	Yes
Night vision distance	30 m
LED type	IR

Video

Specification	Value
Video compression formats	H.264, M-JPEG
Supported video modes	720p, 1080p
Analog signal format system	PAL
3D NR (Noise Reduction)	Yes
Gain control type	Auto/Manual
Automatic gain control	Yes
Back Light Compensation (BLC)	Yes
Bit rate	32K ~ 8192Kbps
Highlight Compensation (HLC)	Yes
Privacy masking	Yes

Audio

Specification	Value
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Signal-to-Noise Ratio (SNR)	50 dB
Voice codecs	G.711a, G.711u

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Cabling technology	10/100Base-T(X)
Number of users	20 user(s)
Quality of Service (QoS) support	Yes
Client interoperability	ONVIF, PSIA, CGI

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
RS-485 ports	0
Interface	RJ-45

Security

Specification	Value
Intelligent Video Surveillance (IVS) system features	Abandoned object, Intrusion, Missing object, People counting, Scene change, Tripwire

Power

Specification	Value
Power source type	PoE
AC input voltage	24 V
Power consumption (typical)	12 W
DC output voltage	12
Power over Ethernet (PoE)	Yes

System requirements

Specification	Value
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Height	119 mm
Diameter	15.1 cm
Weight	1.25 kg

Packaging content

Specification	Value
Number of cameras	1

Technical details

Specification	Value
Video resolutions	352 x 288,704 x 576,1280 x 720,1920 x 1080
